Standard CNC Milling Services
Reliable, cost-effective precision machining for prototype development and full-scale production runs.
BW provides CNC milling for brackets, structural components, and custom industrial hardware. We machine common engineering materials, including carbon steel, stainless steel, and aluminum, and support projects from one-off prototypes through high-volume production. Our core strengths:
- Precision : Tight-tolerance parts machined to your drawings and specifications.
- Speed : Streamlined workflows and fast turnaround for time-critical projects.
- Flexibility : End-to-end support from prototype validation through mass production in one facility.
What Is CNC Milling?
Definition & Principles

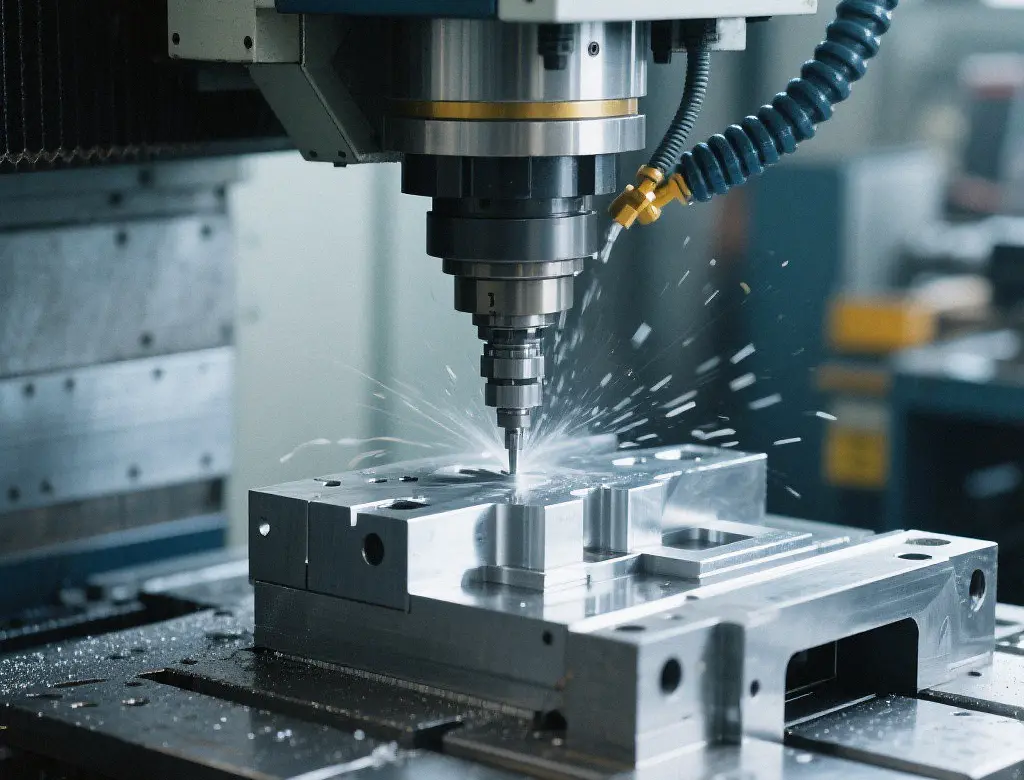

CNC milling is a subtractive manufacturing process that uses computer-controlled machines to remove material from a solid workpiece, shaping it into complex, precision components. The workflow starts with a CAD model, which is then converted into a CNC program to define tool paths and cutting parameters. After machine setup and workpiece fixturing, the cutting tool rotates at thousands of RPM, and the machine moves the tool, the workpiece, or both to achieve precise cuts. Guided by your CAD design file, our 3/4/5-axis machines deliver accurate, repeatable results for prototypes and production runs, with final inspection to ensure consistent quality.
Key Features
- High Precision & Accuracy: Holds tight tolerances down to ±0.01mm for complex, high-performance parts.
- Complex-Geometry Capability: Produces complex 3D contours, undercuts, and fine features that conventional machining may not support.
- Repeatable Results: Produces consistent results across thousands of parts.
CNC Milling Process Advantages
Our CNC milling services offer distinct advantages to meet your specific manufacturing needs.
Tight Tolerances
We hold tolerances down to ±0.01 mm, making this process suitable for high-precision aerospace and medical components.
Design & Production Flexibility
We handle both simple brackets and complex 3D geometries, from one-piece prototypes through production runs of more than 10,000 parts.
Broad Material Compatibility
We work with stainless steel, aluminum, copper, brass, and engineering plastics to match your application needs.
Fast Turnaround & Efficiency
Our 3/4/5-axis machines and optimized workflows deliver standard lead times of 5–10 business days.

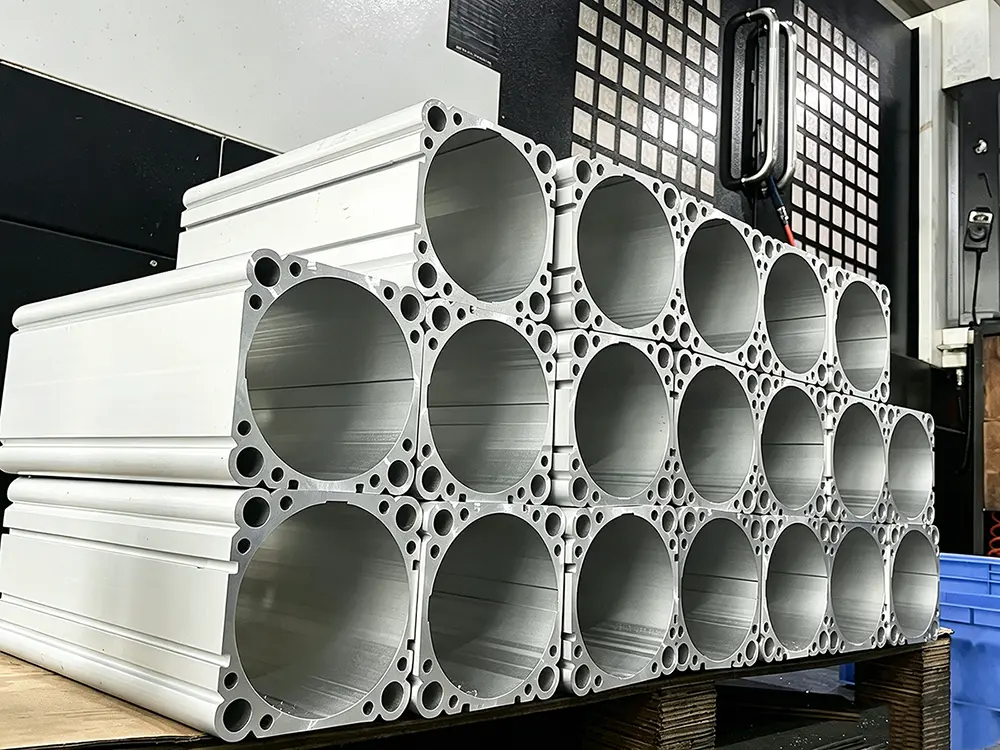

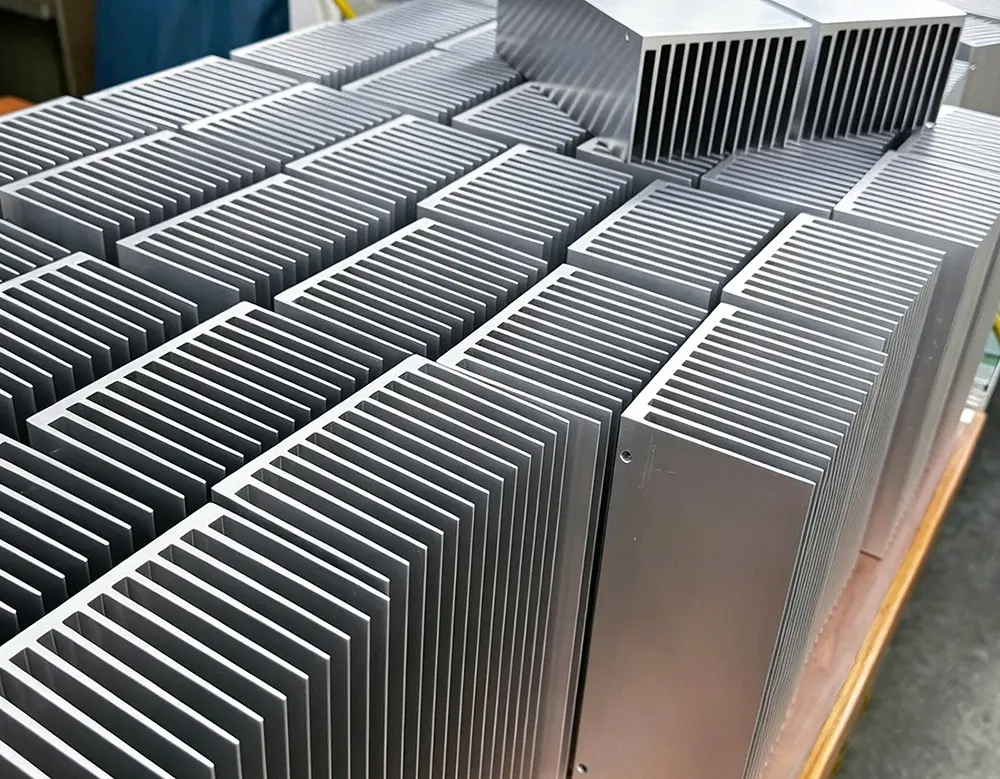

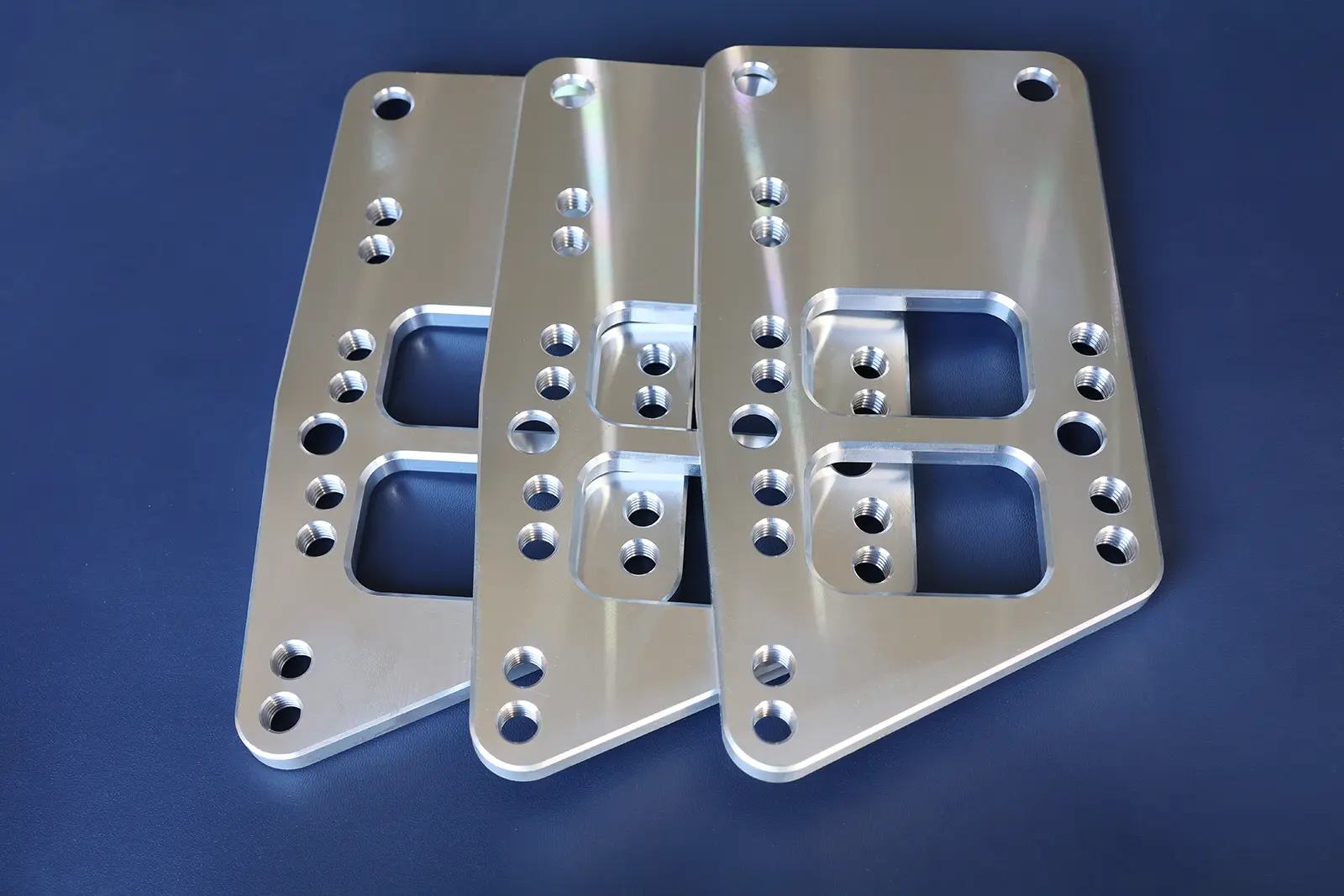

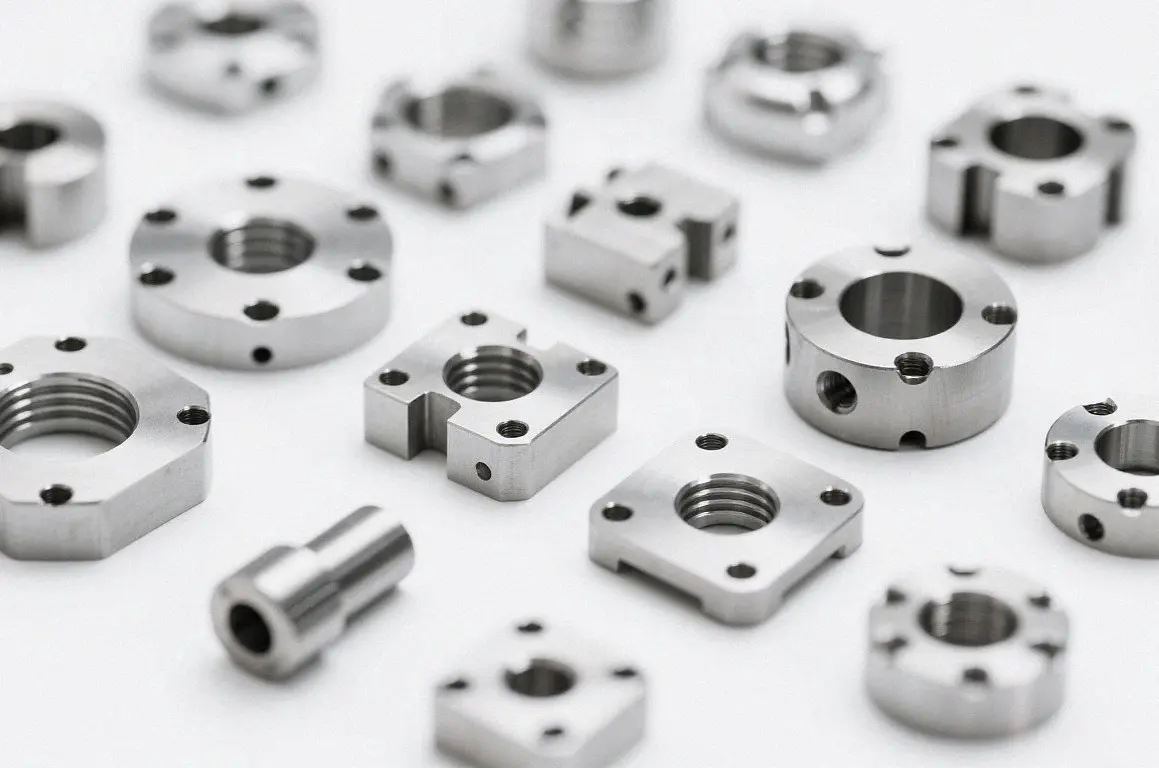

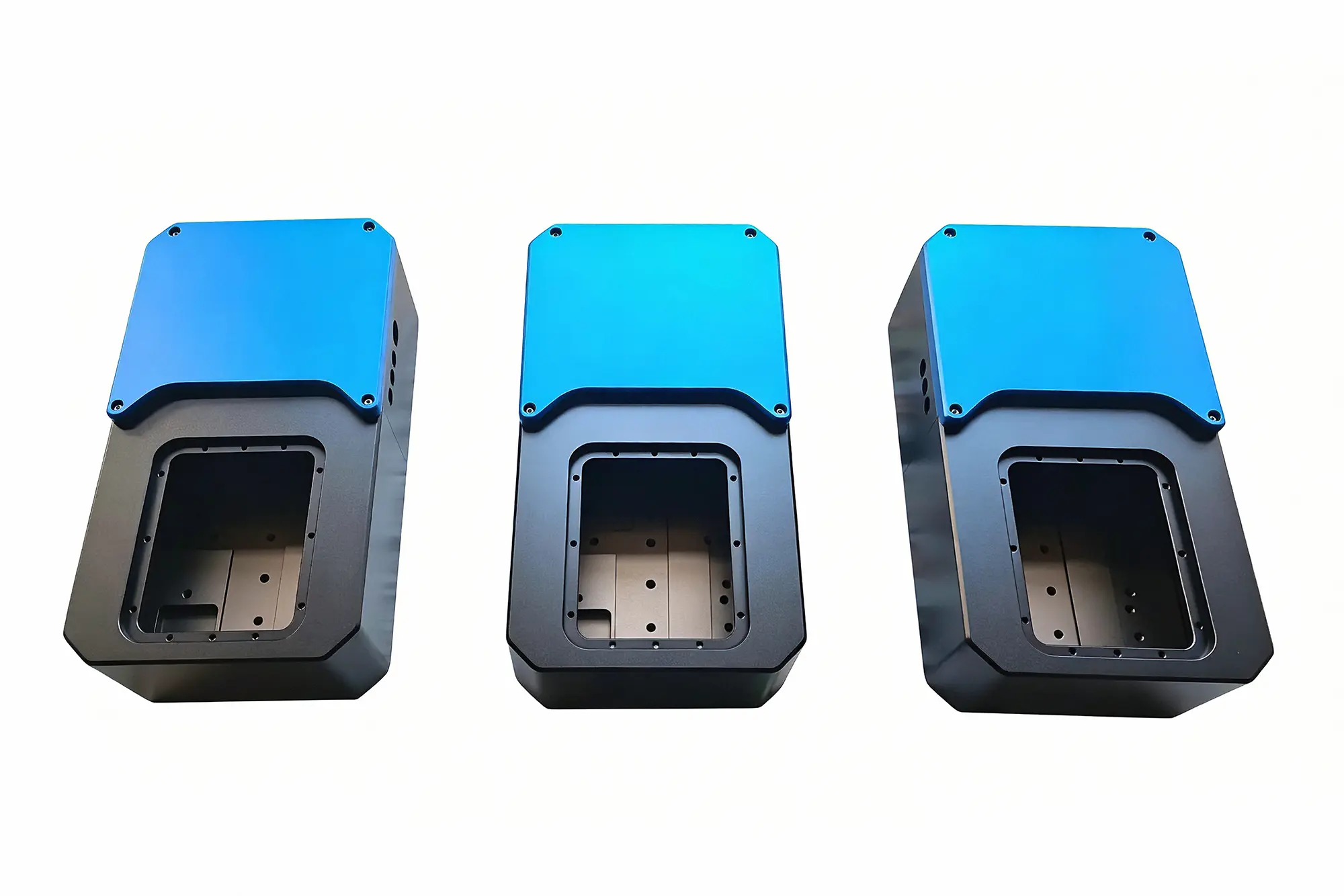

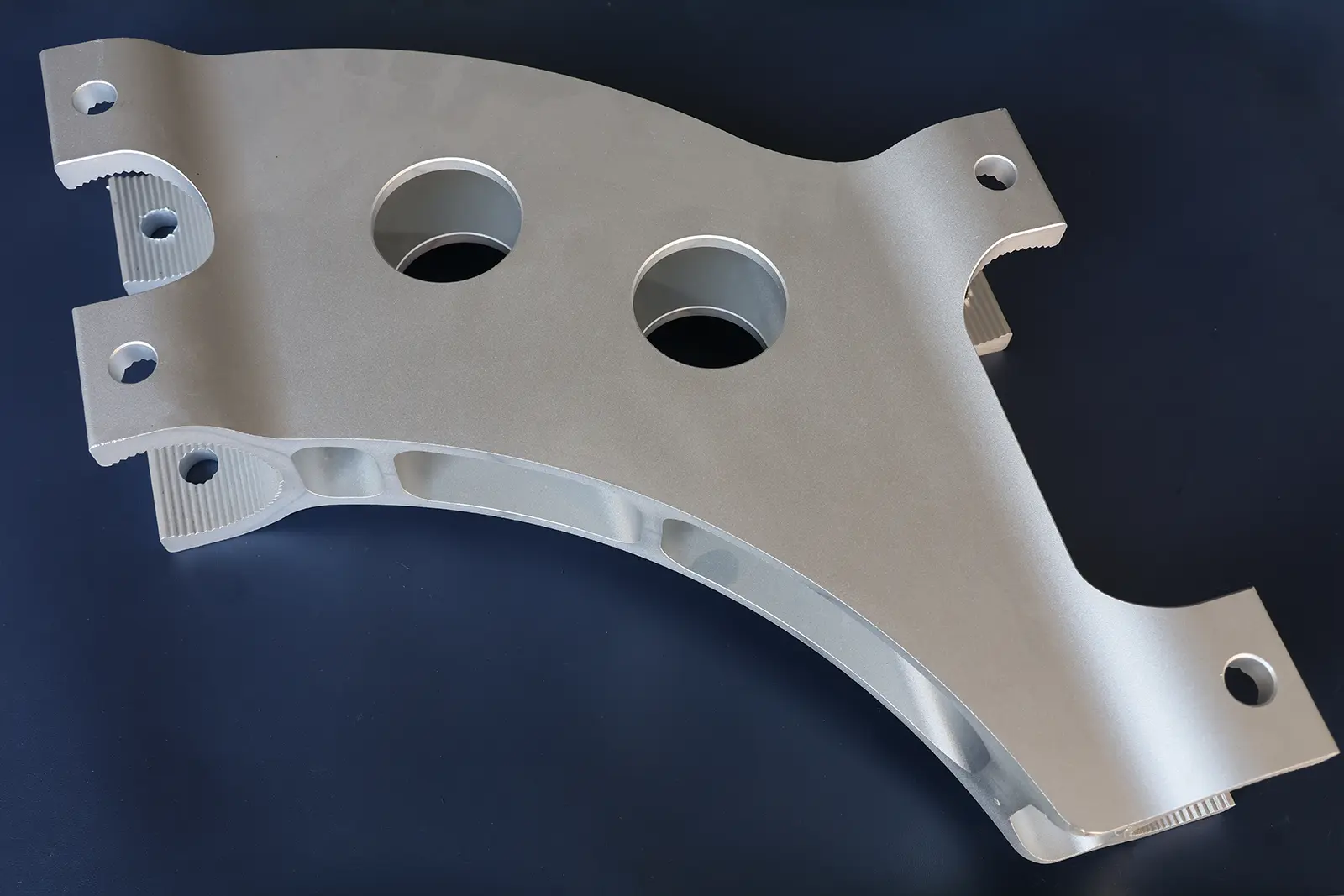

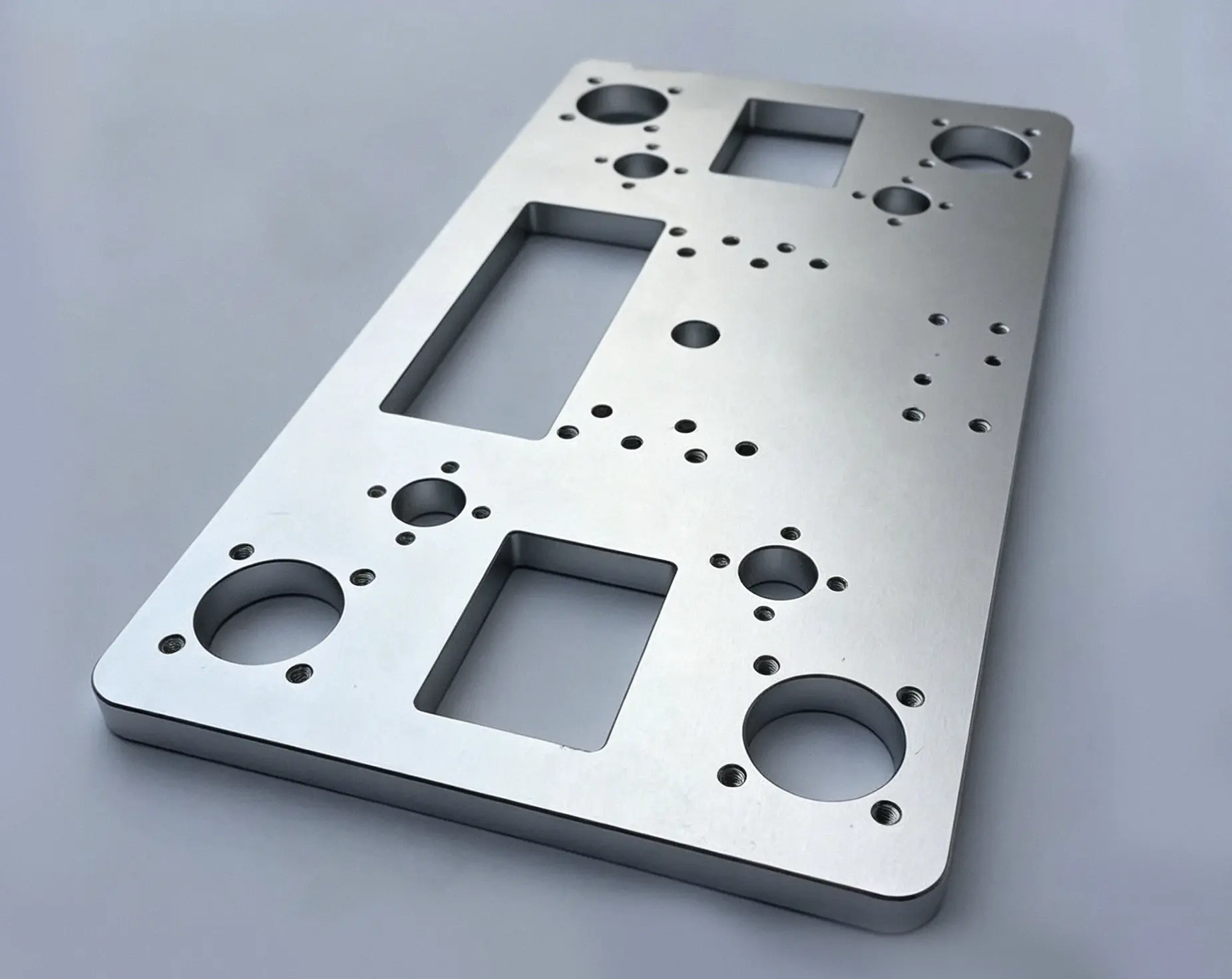

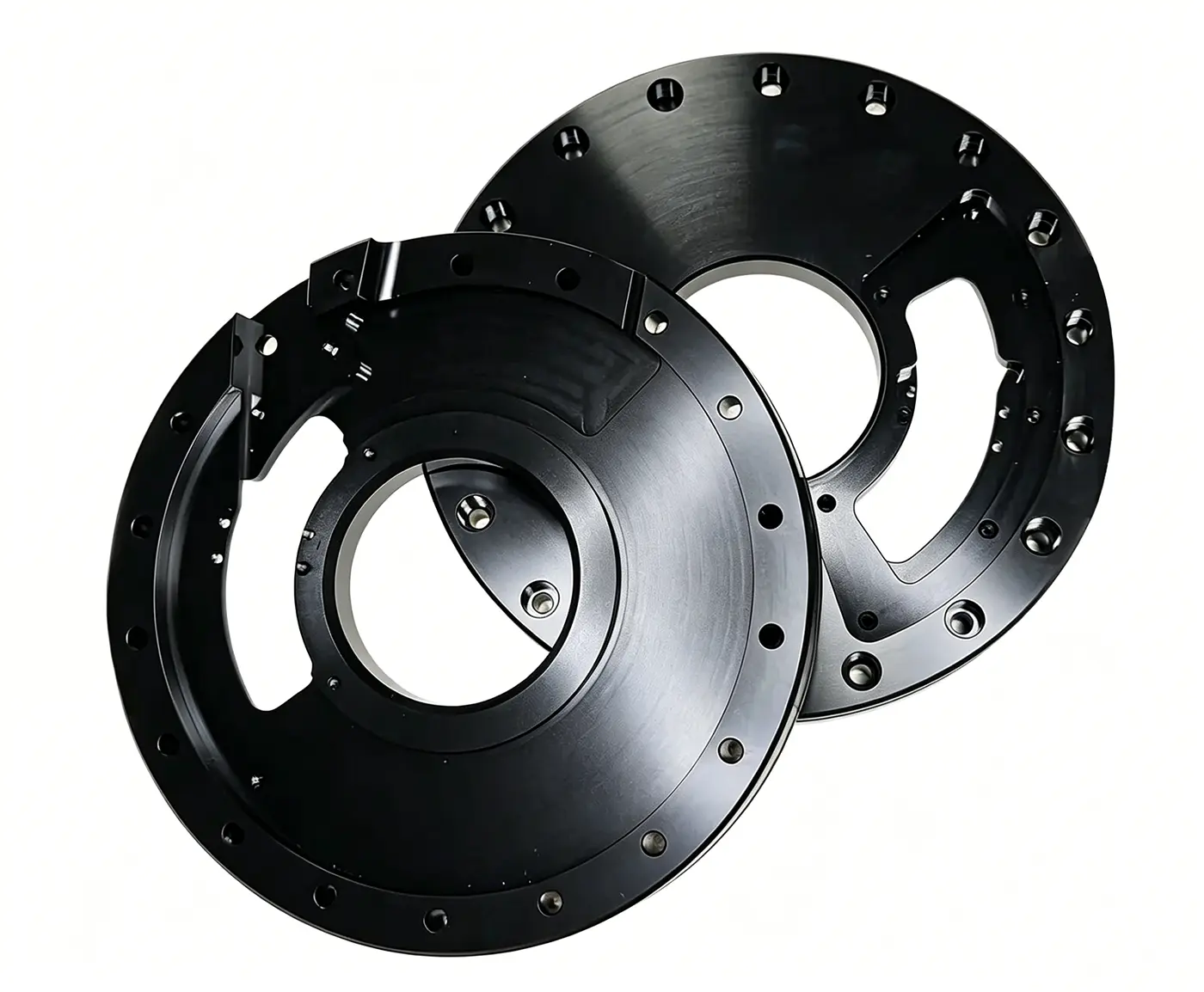

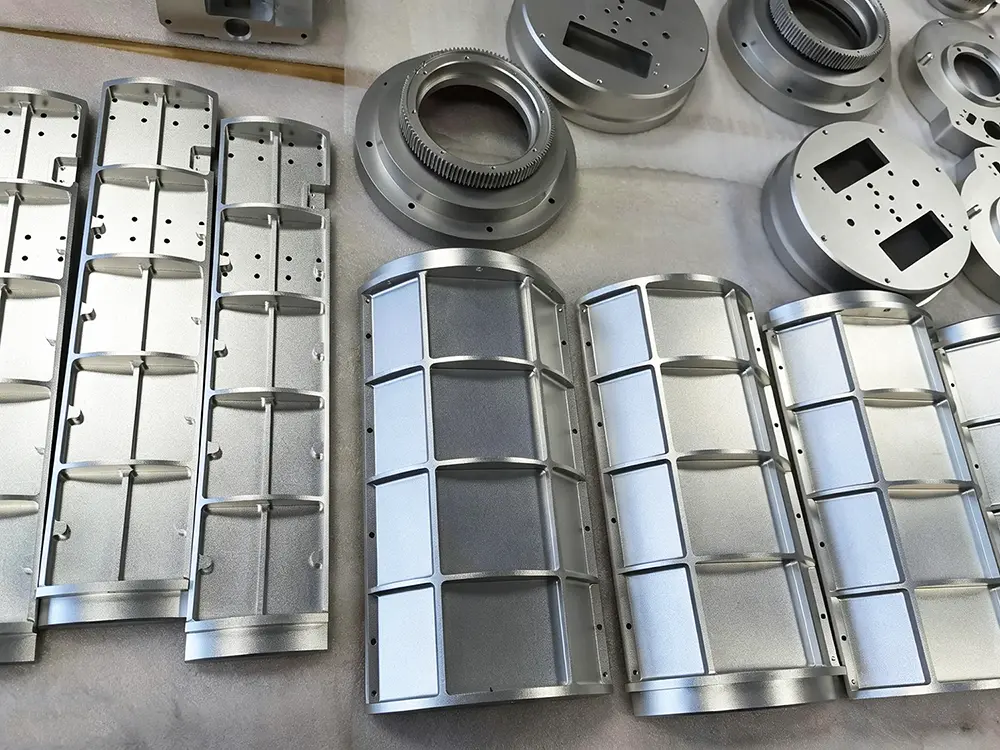

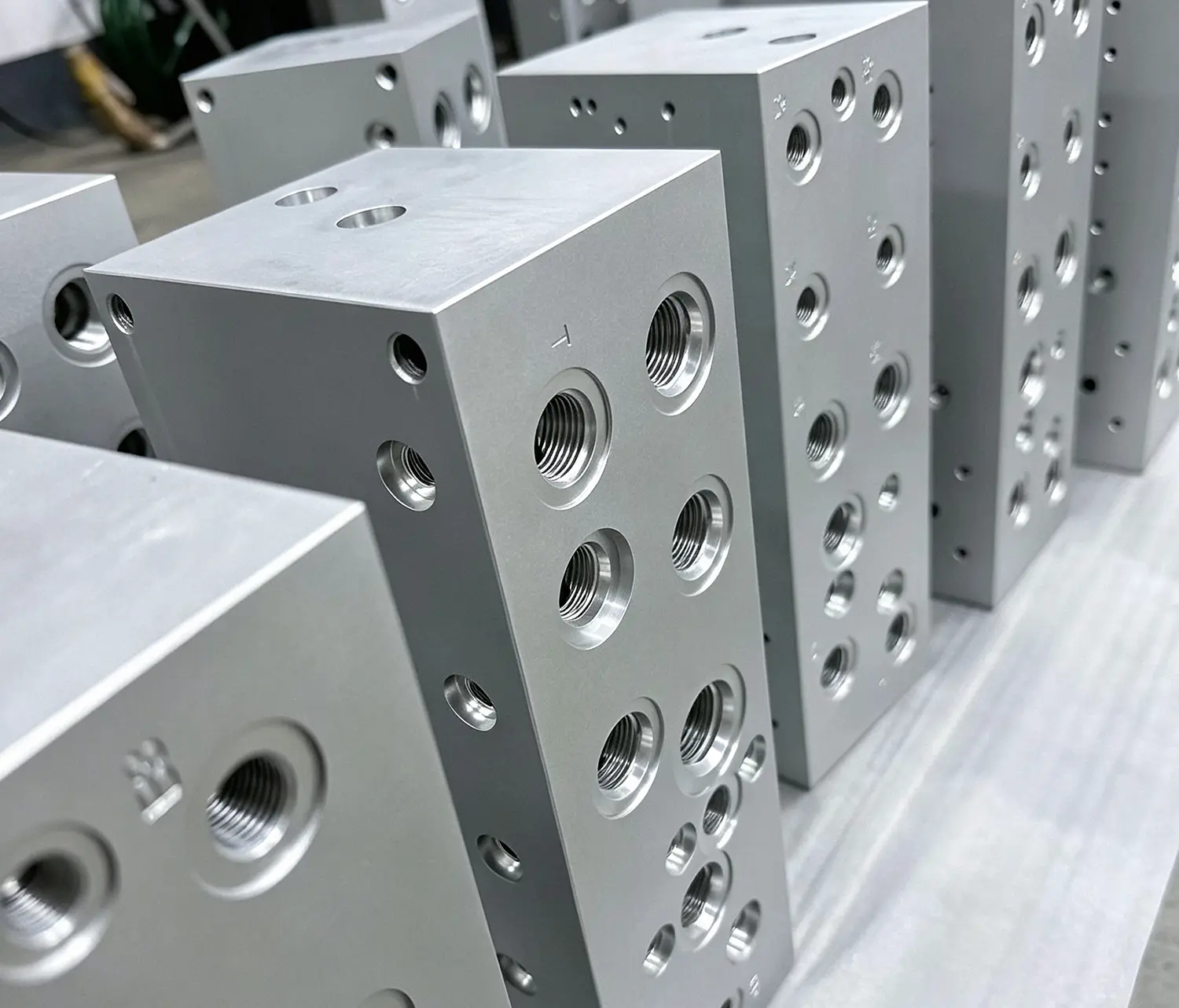

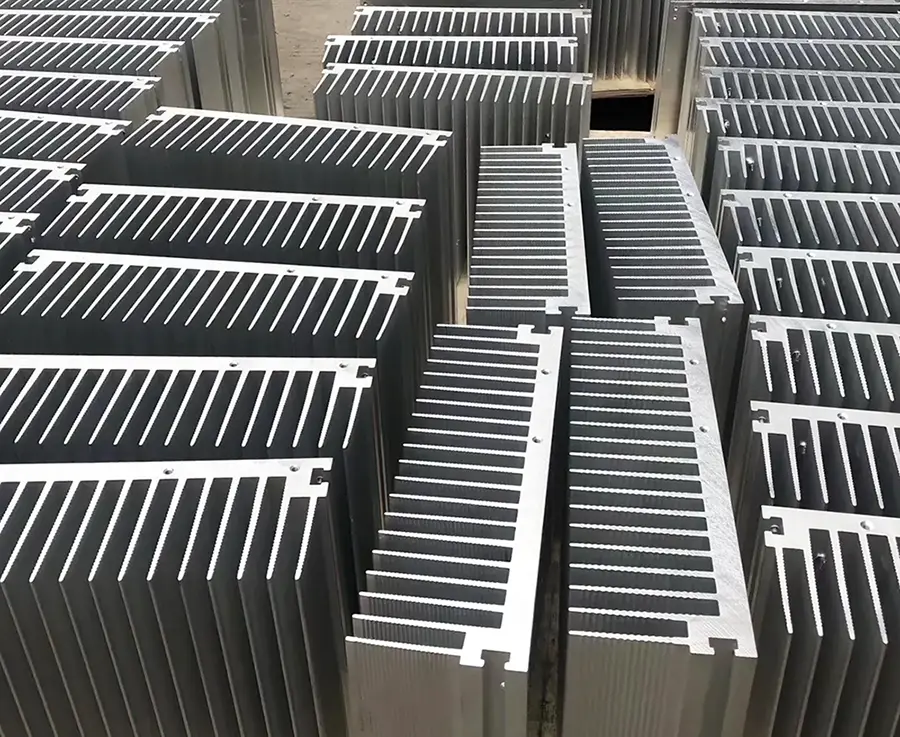

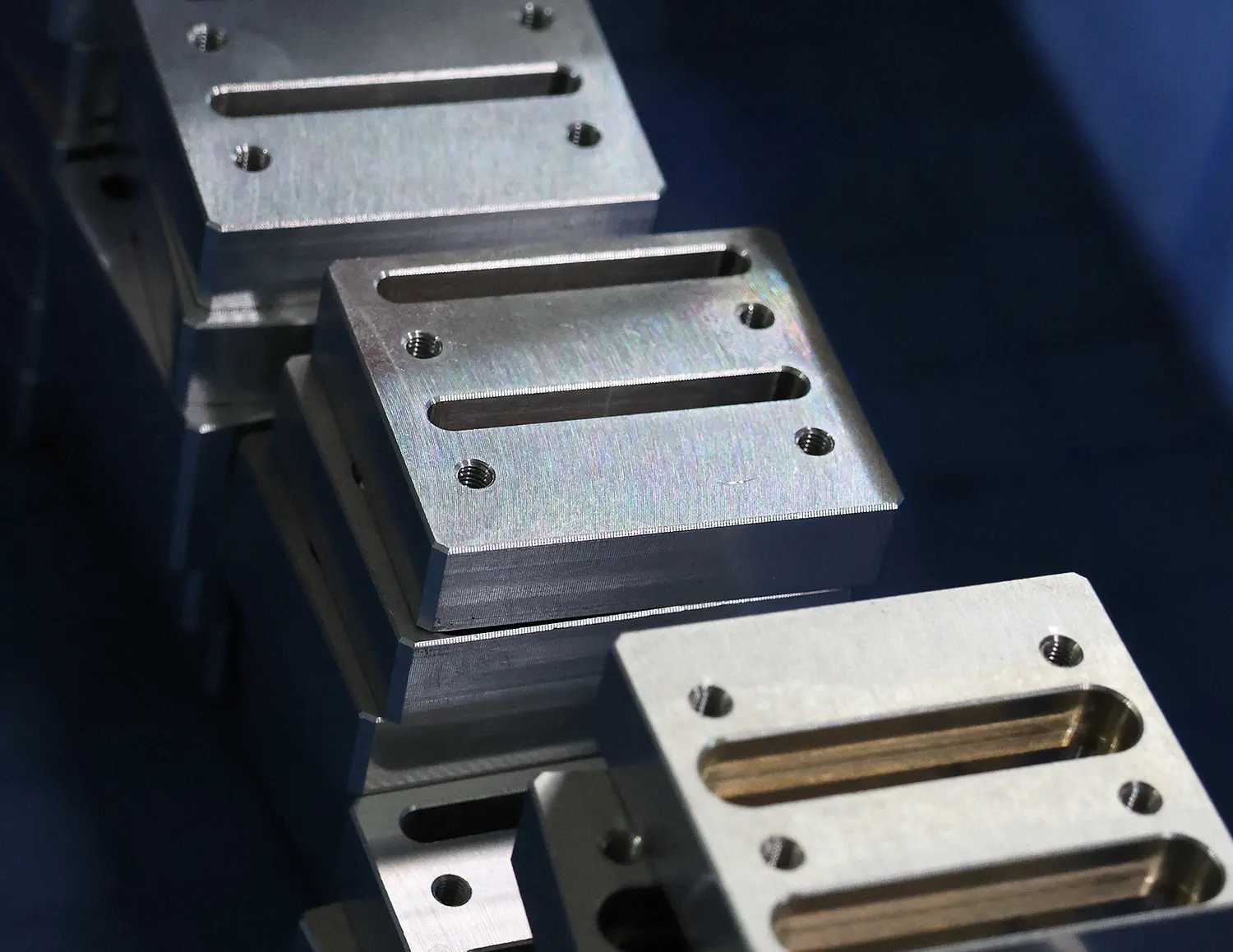

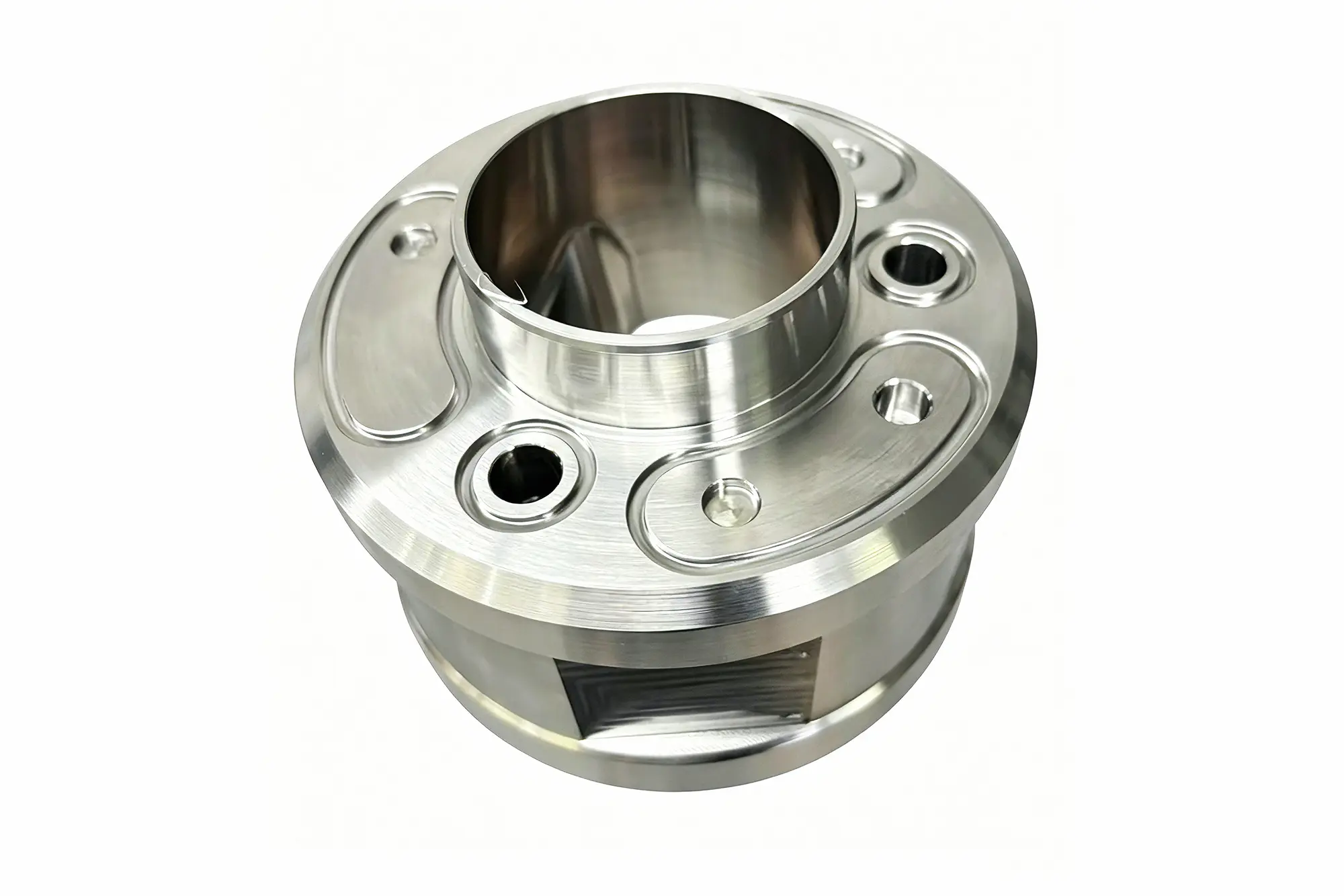

CNC Milled Parts
Precision CNC-milled parts for custom applications across industries. These examples showcase common geometries, materials, and finishes.
CNC Milling Standard Tolerances
For all CNC-milled metal parts (stainless steel, aluminum, brass, titanium), we follow ISO 2768-f , with standard tolerances from ±0.005 in. (±0.125 mm) to ±0.002 in. (±0.05 mm). For critical aerospace or medical applications, we can provide tighter tolerances based on your 2D drawings and GD&T requirements.
| Type | Tolerance |
|---|---|
| Tolerance Standard (ISO 2768-f) | Metals: ISO 2768-f |
| Maximum Part Size | 157.5 × 59.1 × 23.6 in (4000 × 1500 × 600 mm) |
| Minimum Part Size | 0.1 × 0.1 in (2.5 × 2.5 mm) |
| Minimum Feature Size | ∅ 0.00197 in (∅ 0.05 mm) |
| Linear Dimension | ±0.001 in (±0.025 mm) |
| Hole Diameters (Not Reamed) | ±0.001 in (±0.025 mm) |
| Shaft Diameters | ±0.001 in (±0.025 mm) |
Why Choose Our CNC Milling Services
15+ Years of Engineering Expertise
We produce complex geometries with tight tolerances down to ±0.01 mm.
Flexible Order Quantities — No MOQ
We support rapid prototyping (1–10 pieces) and high-volume production (more than 10,000 pieces).
3/4/5-Axis Machining & Inspection
Full inspection ensures consistent quality and repeatable results.
Competitive Pricing & Fast Lead Times
Cost-effective manufacturing with standard lead times of 5–10 days.
One-Stop Finishing Support
Our in-house finishing options, including anodizing and powder coating, help optimize part performance.
CNC Milling Process

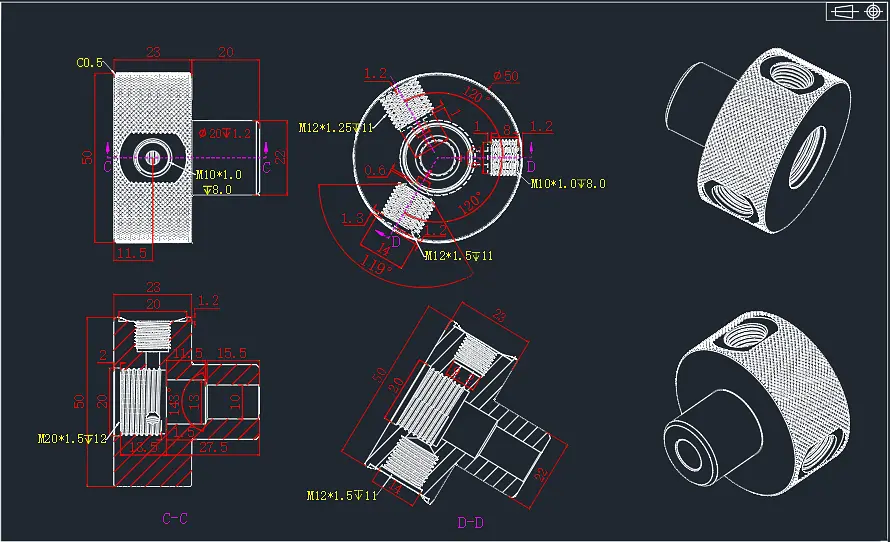

CAD File Conversion
CAD files are converted into custom CNC programs with precise tool paths and cutting parameters.

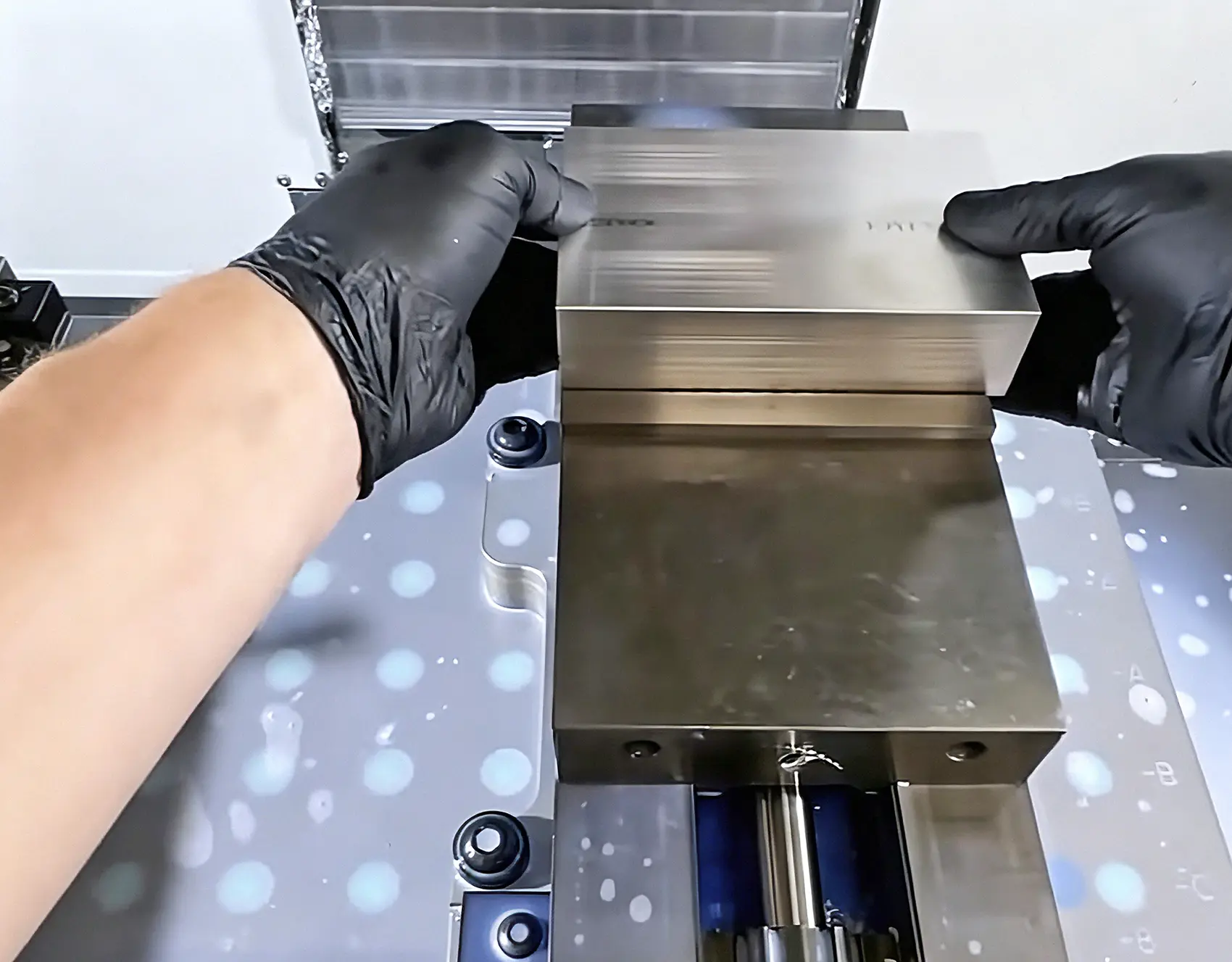

Workpiece Mounting
The workpiece is securely fixtured to the machine table for stable, accurate cutting.

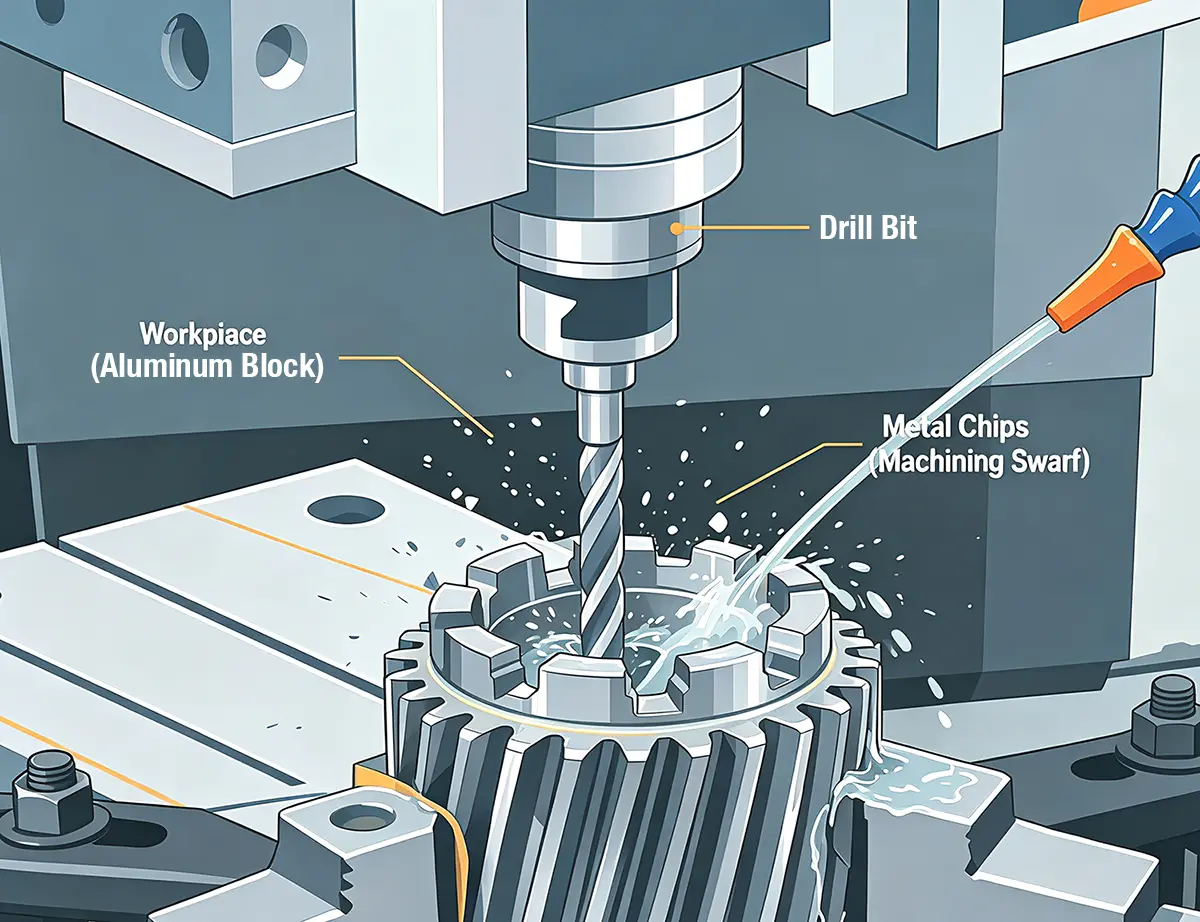

CNC Milling
Multi-axis cutting tools remove material to shape the part exactly to your design specifications.

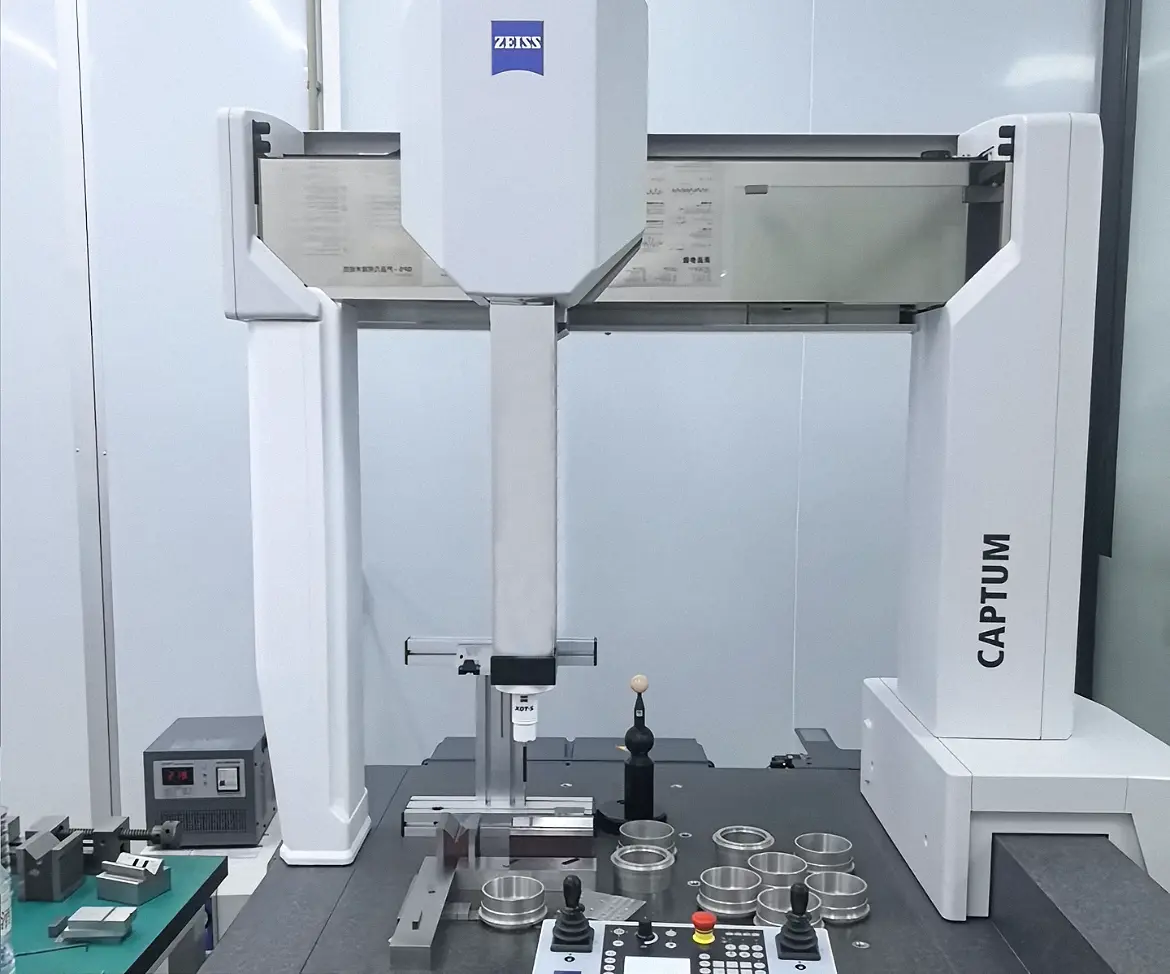

Quality Inspection
Finished parts undergo dimensional inspection to ensure they meet your tolerance and quality requirements.
CNC Machining Materials
We work with a wide range of metal materials to meet the specific requirements of your CNC machining projects.
- Aluminum Alloys 5052, 6061-T6, 7075-T6, MIC-6, 2024-T3
- Stainless Steel 303, 304, 316/316L, 416, 17-4 PH
- Carbon and Alloy Steels A36, 4130/4140, Low Carbon Steel
- Copper & Brass C110 ETP Copper, Copper 101, Brass C360, Brass 260, C932 Bearing Bronze
- Specialty Alloys Titanium, Zinc (as needed)
Surface Finishes for CNC-Machined Metal Parts
We offer a variety of surface treatments to enhance the appearance, durability, and performance of your CNC machined parts.
- Powder Coating
- Anodizing
- Sandblasting
- Brushing
- Polishing
- Electroplating
- Passivation
- Painting
Frequently Asked Questions
What factors affect CNC milling quality?
Material hardness, part complexity, tool selection, machine precision, and fixturing stability all influence final part quality.
What determines the cost of CNC-milled parts?
Cost depends on part size, complexity, material type, tolerance requirements, order quantity, and secondary finishing processes.
What's the difference between 3-axis and 5-axis CNC milling?
3-axis milling moves tools along three directions for simple parts. 5-axis milling uses additional angles to create complex, curved geometries with higher precision.
How can I improve CNC milling surface finish?
Smoother finishes are achieved through finer tooling, optimized cutting speeds, lower feed rates, and appropriate material selection.
Why do CNC milling lead times vary between projects?
Lead times change based on part complexity, material availability, machining time, inspection requirements, and order volume.
What design features can make CNC milling more difficult?
Deep narrow slots, thin walls, tight internal corners, extreme tolerances, and complex undercuts typically increase machining difficulty.
