Custom Sheet Metal Bending Services
Precision bending for 90° bends, complex angles, and multiaxis geometries in both prototype and high-volume production.
Capabilities

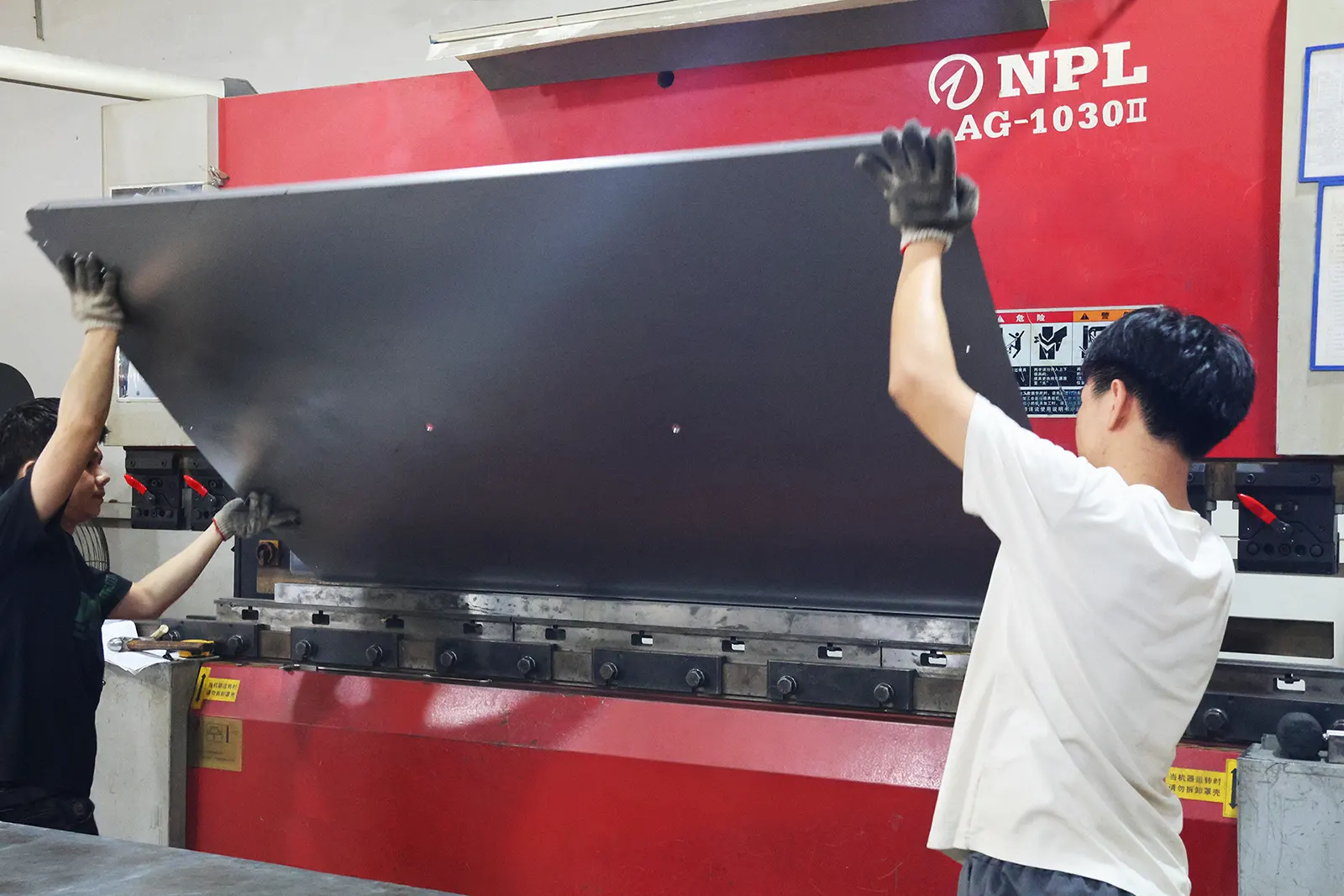

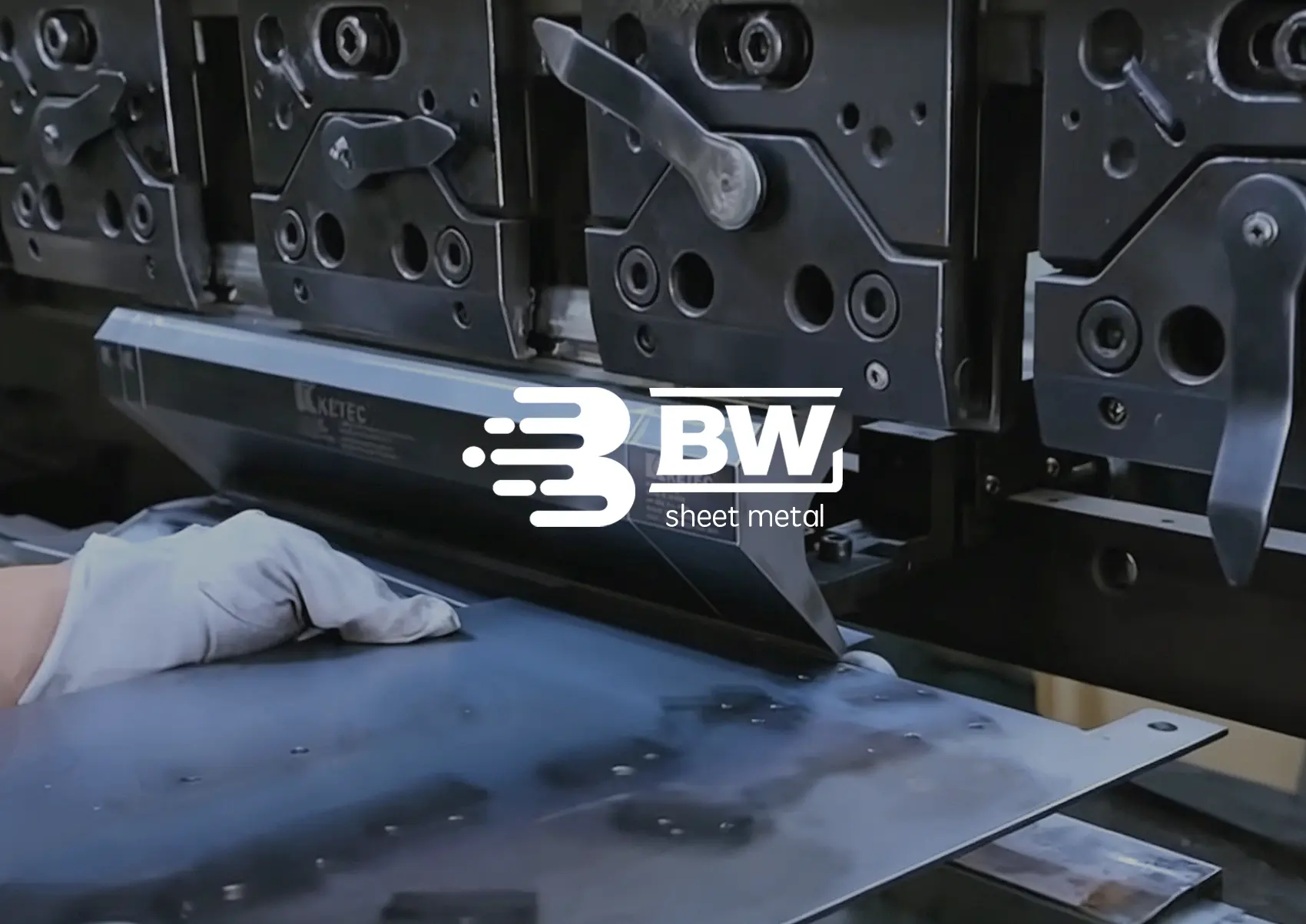

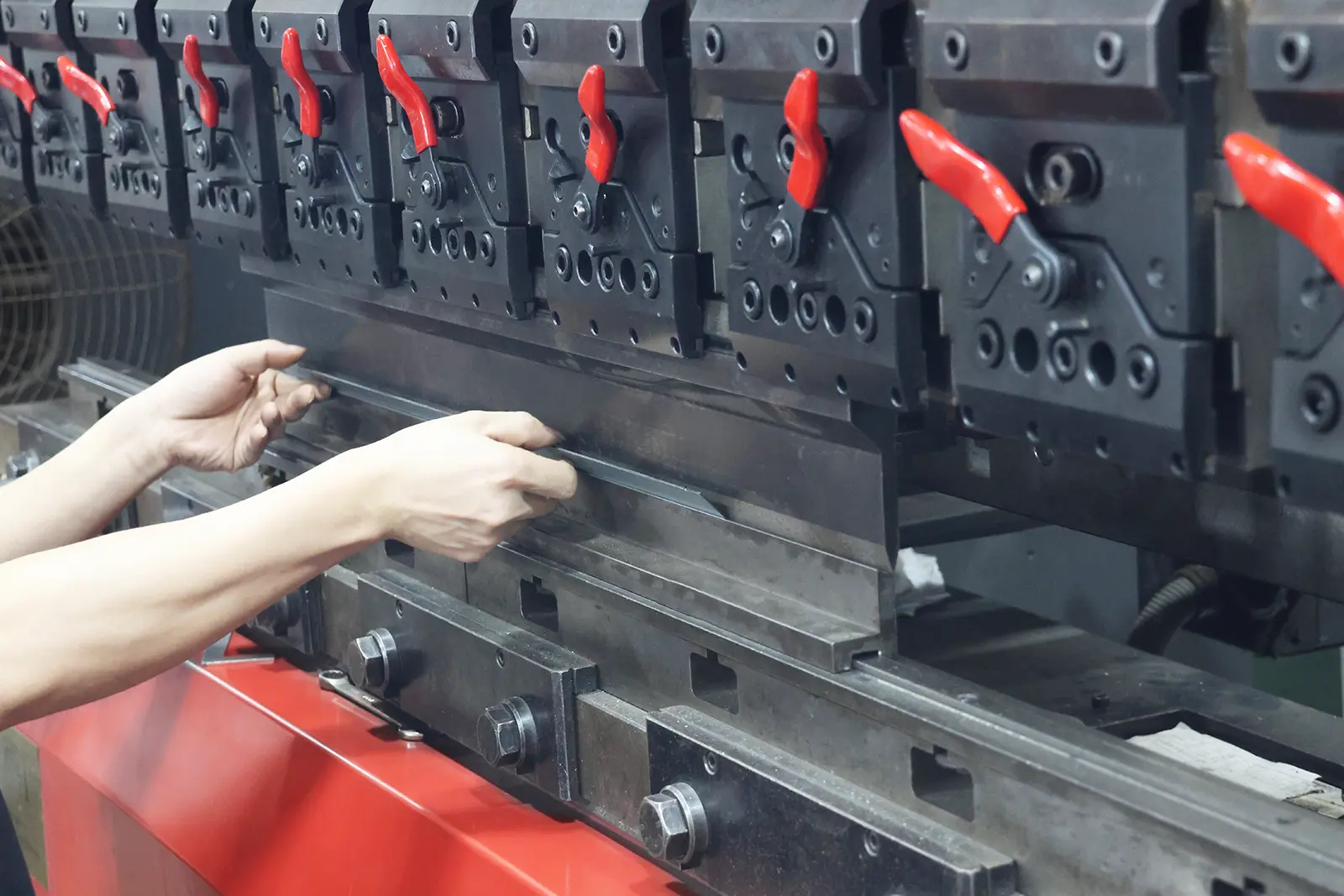

Our press brakes handle simple 90° bends, obtuse angles, and complex multiaxis geometries.
Materials include carbon steel, stainless steel, aluminum, copper, and brass.
Thickness: up to 6 mm, depending on the material and bend radius.
- From prototype runs through high-volume production.
- V‑bending, air bending, bottom bending – matched to your part geometry and tolerance requirements.
- Clean, accurate bends with minimal springback.
- Full-process control from material selection through final inspection.
- On‑time delivery to North America, Europe & worldwide.
- Design review & tooling support included.
V-Bending
Sheet-metal V-bending uses a V-shaped die and punch to form standard 90° and obtuse angles. It is suitable for high-volume parts that require consistent bend angles.

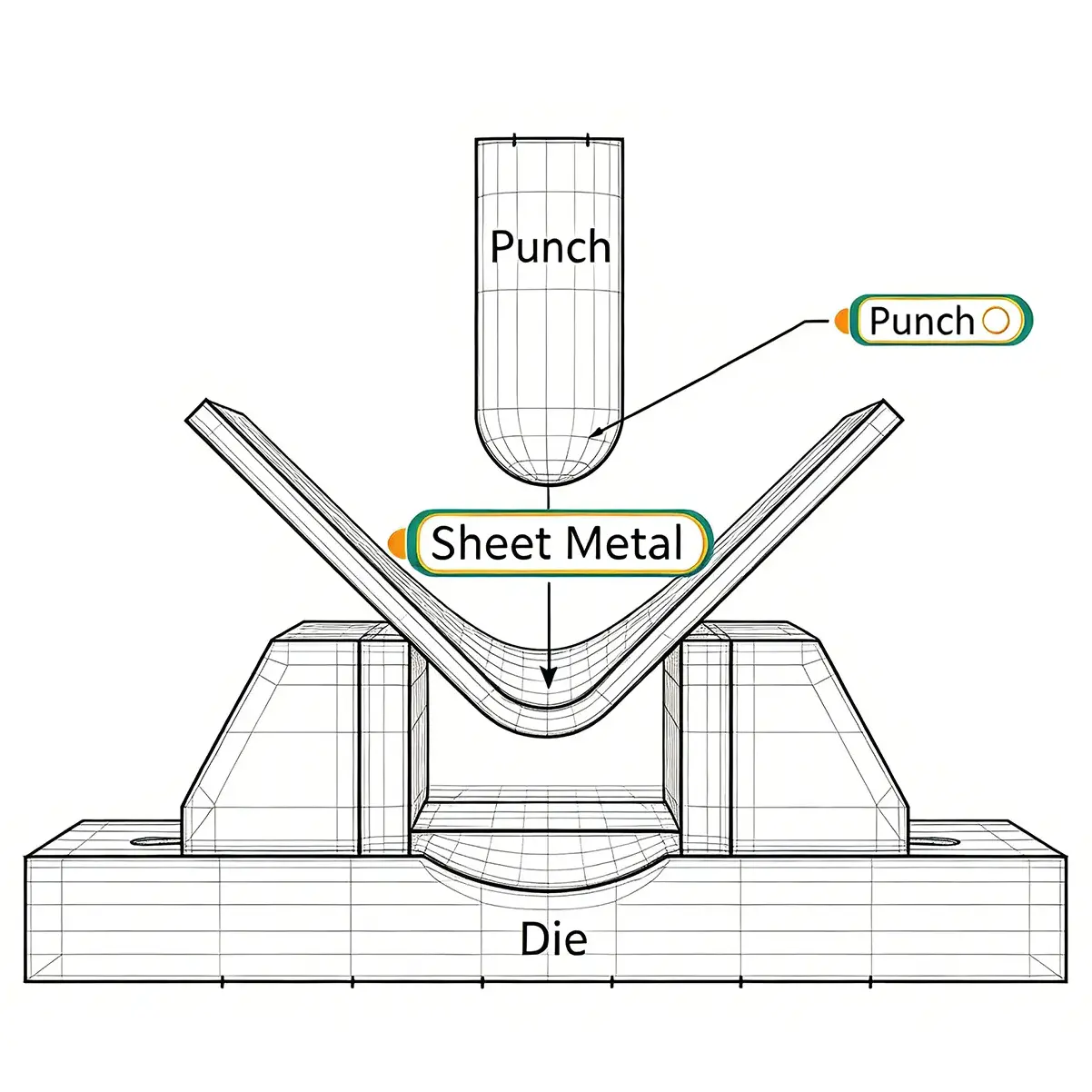

Air Bending
Air bending leaves clearance under the sheet for precise angle control, with less springback than V-bending for tight-tolerance sheet metal parts.

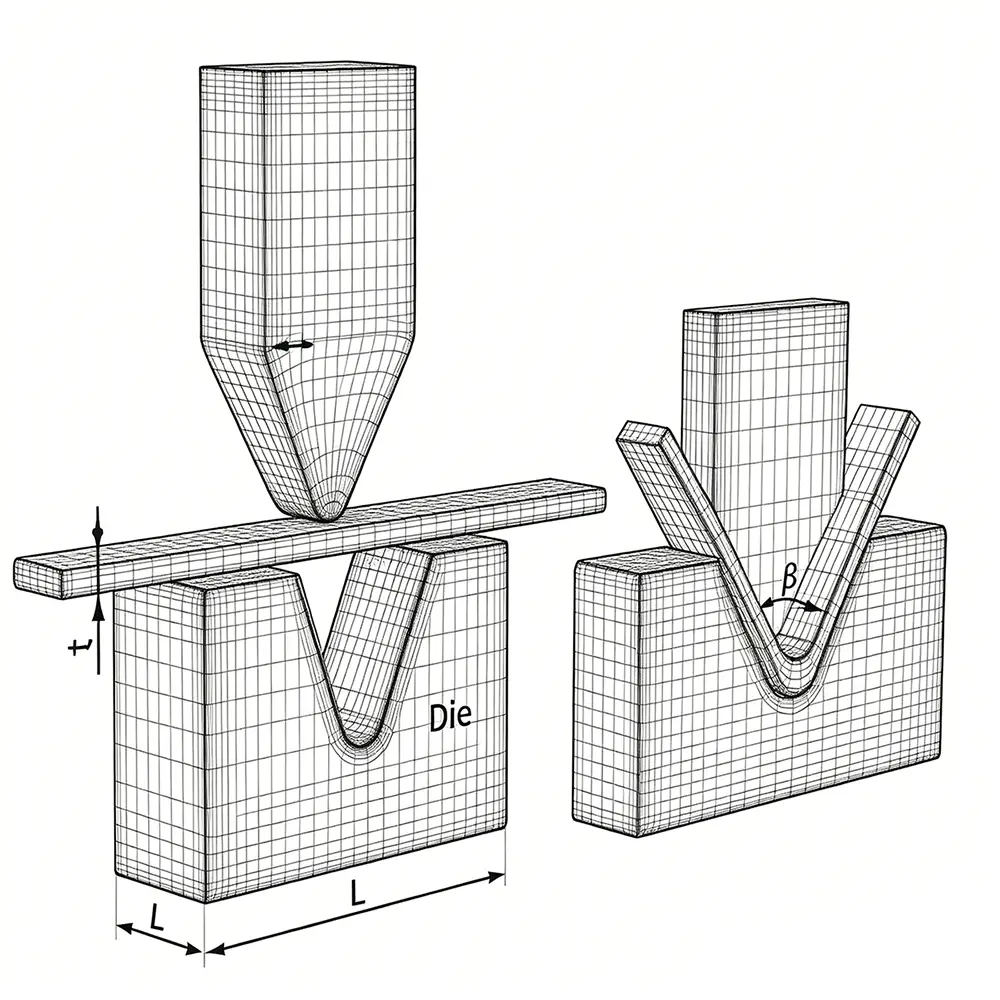

Bottom Bending
Bottom bending uses higher-tonnage presses for exact angle control, delivering repeatable results for mass-produced sheet metal components.

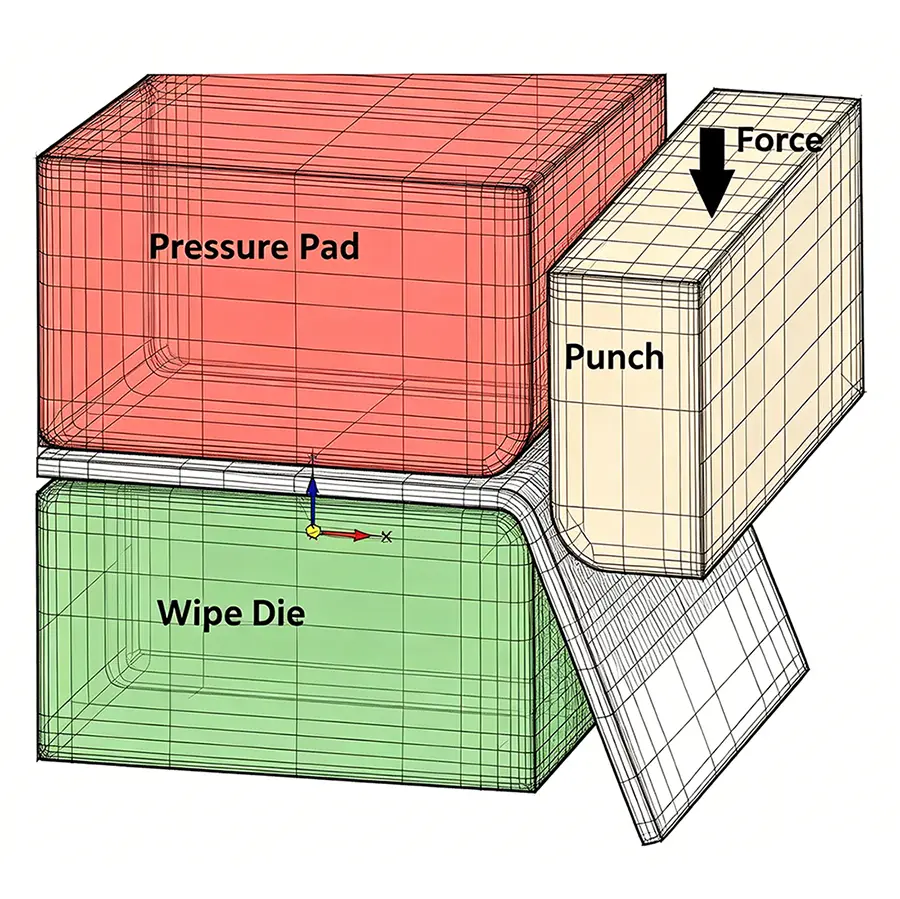

Wipe Bending
Wipe bending clamps the sheet against a wipe die to form clean, sharp edges, ideal for thin-gauge sheet metal parts.
Core Advantages of Sheet Metal Bending
Key benefits of sheet metal bending over traditional manufacturing methods for custom metal components
Precision & Repeatability
Delivers tight dimensional tolerances and consistent bend angles. Parts maintain uniform dimensions across small runs and high-volume orders.
Design Flexibility
Supports complex geometries, custom angles, and variable radii. Changes to designs can be made without expensive tooling rework, ideal for custom or low-volume projects.
Cost & Time Efficiency
Minimizes material waste by forming rather than removing metal. It reduces lead times by combining multiple forming steps into one streamlined process.
Broad Material Compatibility
Works with most common sheet metals, including carbon steel, stainless steel, aluminum, copper, and brass, across varying thicknesses.
Sheet Metal Bending Technical Parameters
Core technical specifications for our ISO 9001-certified sheet-metal bending services in China.
| Parameter Description | Specific Indicators |
|---|---|
| Max Sheet Size | Standard: 10 ft × 20 ft (3 m × 6 m); custom sizes available for large-scale projects |
| Lead Time | Standard 3–7 business days; rush orders available for urgent custom projects |
| Material Thickness Range | Standard: 0.024–0.250 in. (0.6–6.35 mm); custom thicknesses available upon request |
| Standard Bending Tolerances |
|
| Press Brake Capabilities | 10 ft bed length; 3–6 in. bending fingers; supports complex multi-plane bending |
Sheet Metal Bending Materials
| Material Type | Specific Grades | Common Applications |
|---|---|---|
| Galvanized Steel | ASTM A653 (SGCC) | Enclosures, structural parts, general industrial components |
| Electrogalvanized Steel | ASTM A591 (SECC) | Electronic housings, precision components |
| Stainless Steel | ASTM 201, 304, 316 (SUS201, SUS304, SUS316) | Hygienic, corrosion-resistant, and high-temperature components |
| Cold Rolled Carbon Steel | ASTM A1008 (SPCC) | Load-bearing brackets, frames, and structural parts |
| Copper Alloys | C11000 (Red Copper), C75200 (White Copper) | Conductive, decorative, and fluid-handling parts |
| Aluminum | 5052, 6061 (ASTM B209) | Lightweight, high-strength, and thermal management components |
| Tin-Plated Steel | ASTM A624 (SPTE) | Food-safe containers, conductive components |
| Spring Steel | ASTM A228 | Elastic components, fasteners, and clips |
| Manganese Steel | ASTM A128 | High-wear industrial parts, heavy-duty components |
| Our ISO 9001-certified sheet-metal bending services support these materials, along with custom sizes, thicknesses, and finishes for clients worldwide. | ||
Surface Treatment Processes
| Treatment Name | Description | Applicable Materials | Color | Texture |
|---|---|---|---|---|
| Anodizing | Improves corrosion resistance, wear resistance, and hardness while protecting the metal surface. | Aluminum | Transparent/Black/Gray/Red/Blue/Gold | Smooth/Matte |
| Shot Blasting | Creates a smooth, matte surface and can be used as a pretreatment step. | ABS, Aluminum, Brass, Stainless Steel, Steel | None | Matte |
| Powder Coating | Uses electrostatic application and heat curing to create a highly durable finish. | Aluminum, Stainless Steel, Steel | Black/Any RAL/Pantone color | Glossy/Semi-glossy |
| Electroplating | Multi-functional for function/decoration/corrosion protection | Aluminum, Steel, Stainless Steel | None | Smooth/Glossy |

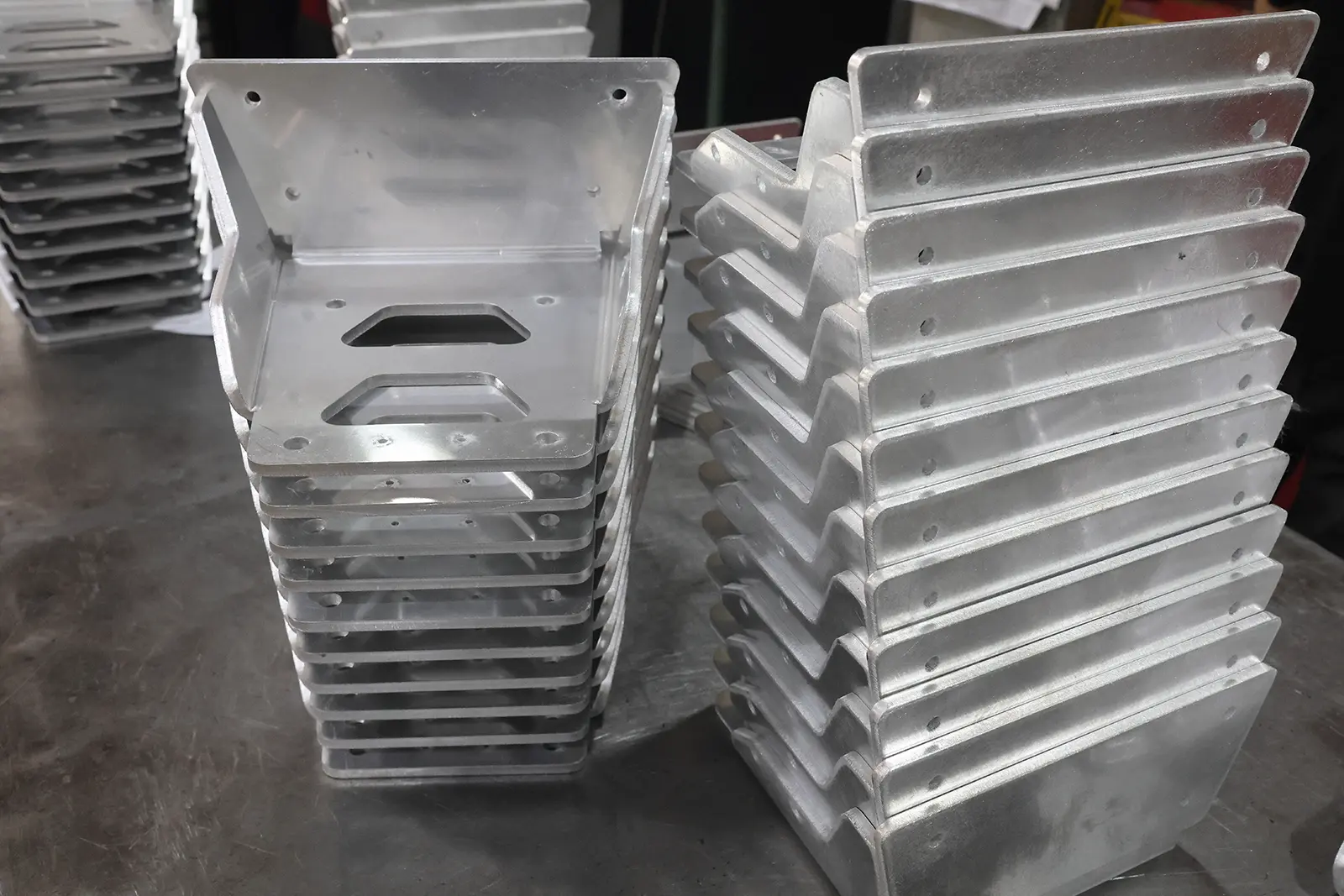

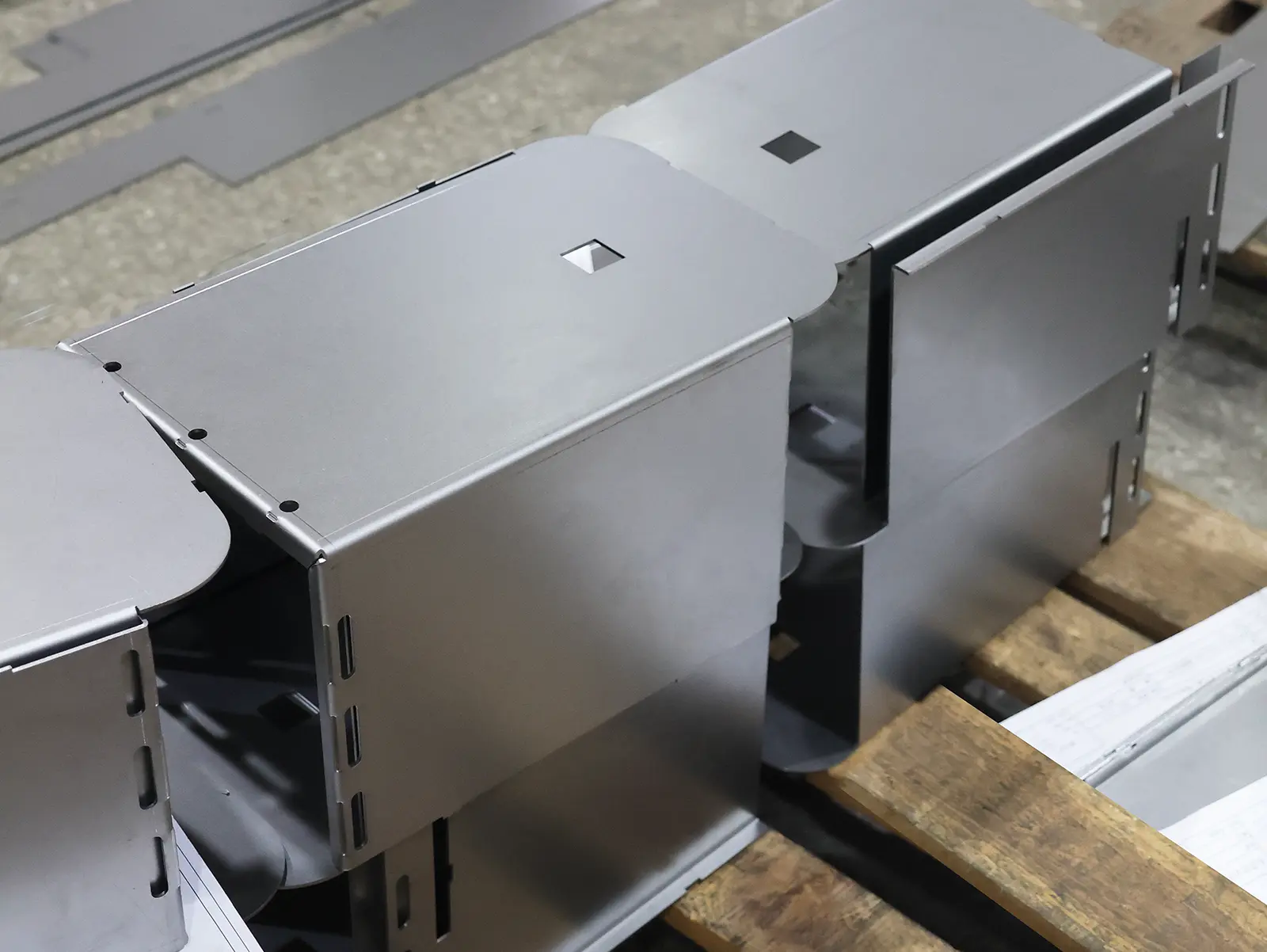

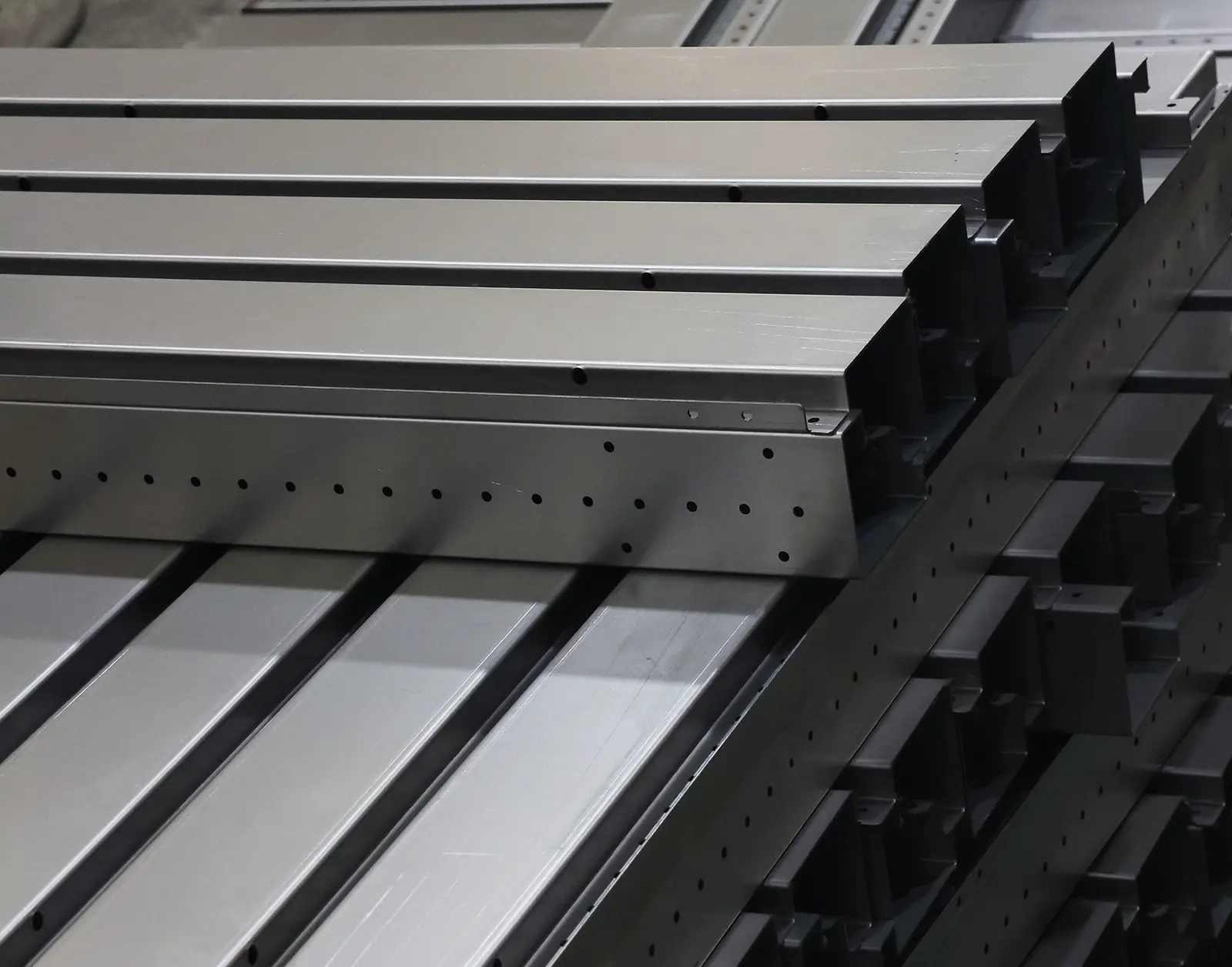

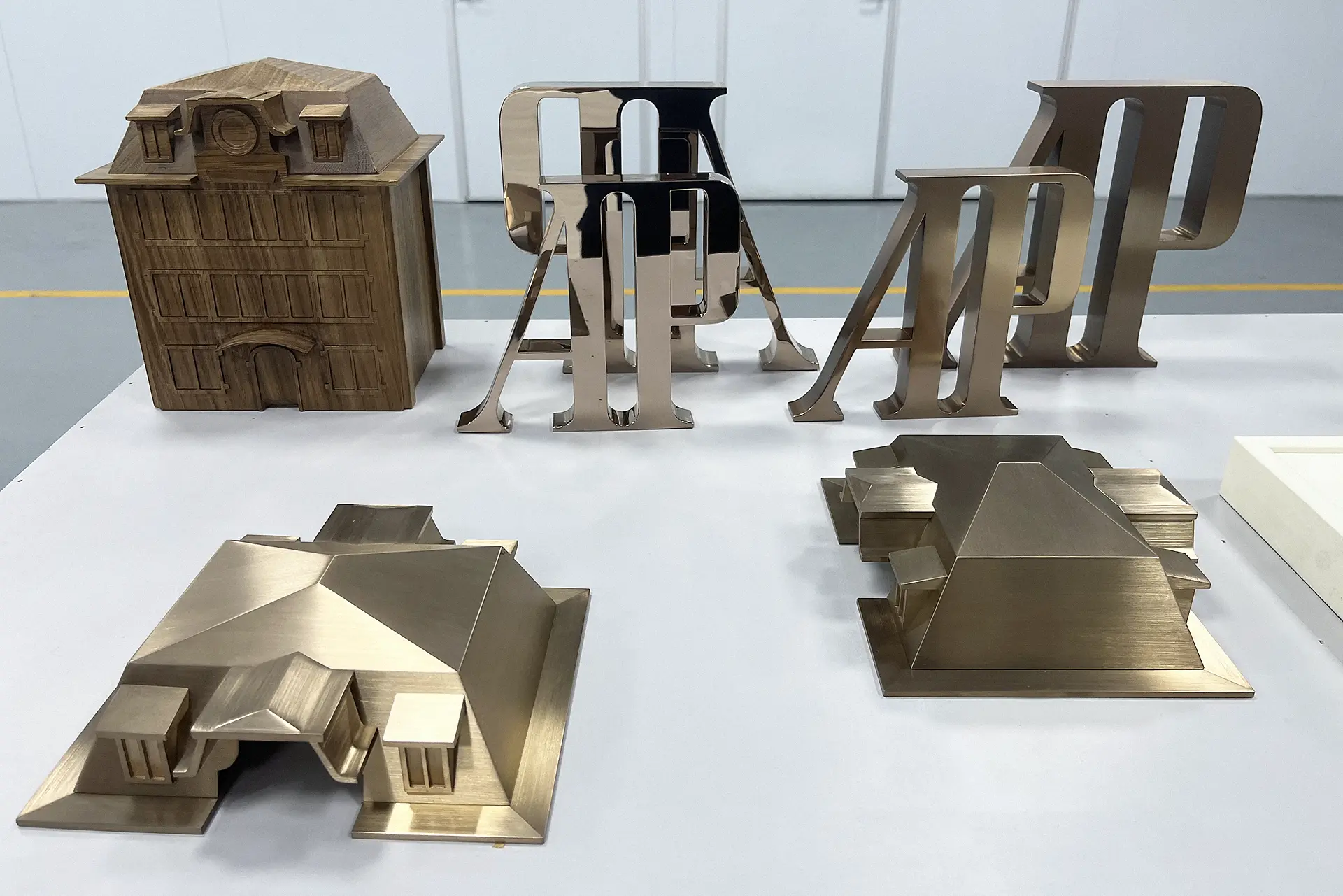

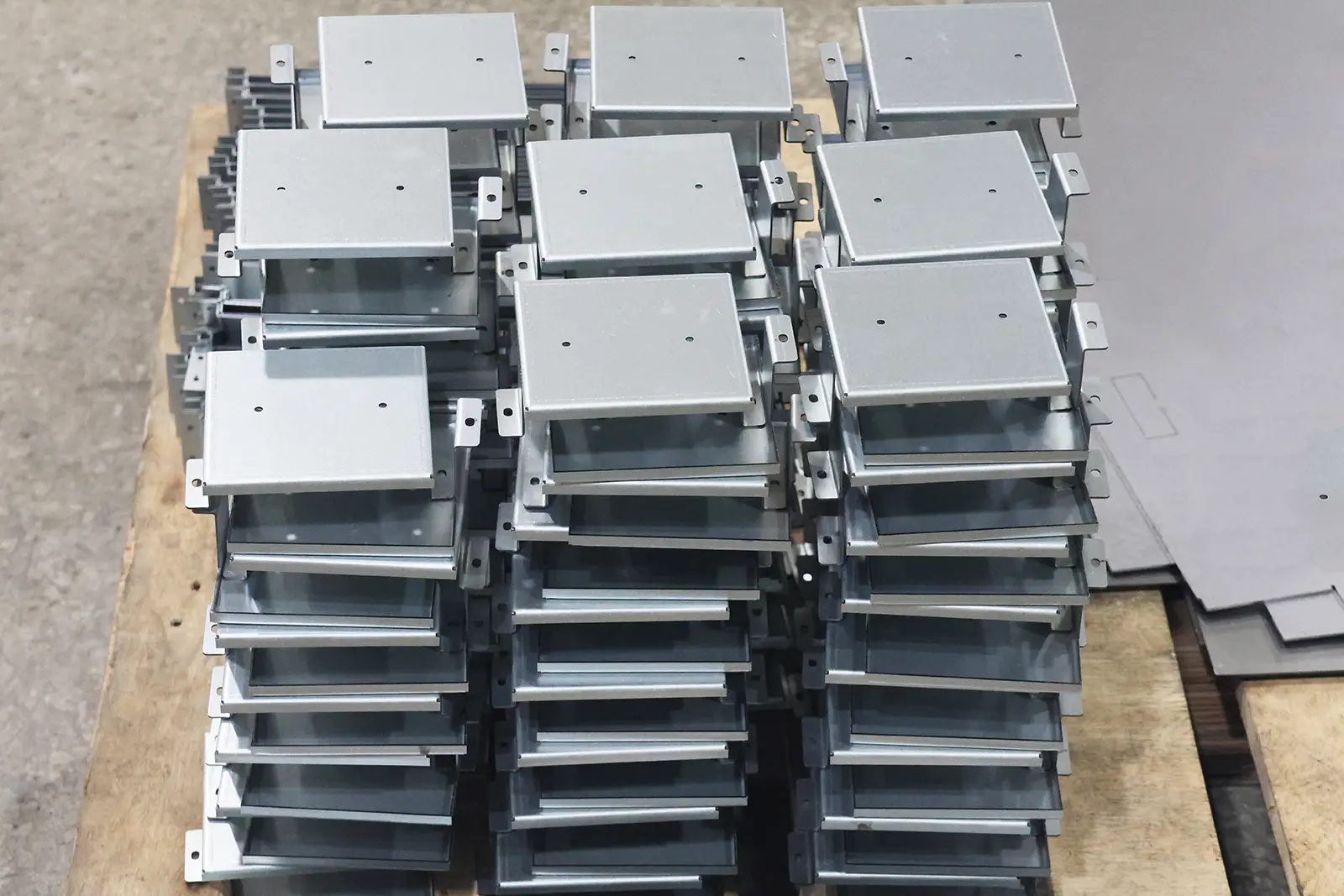

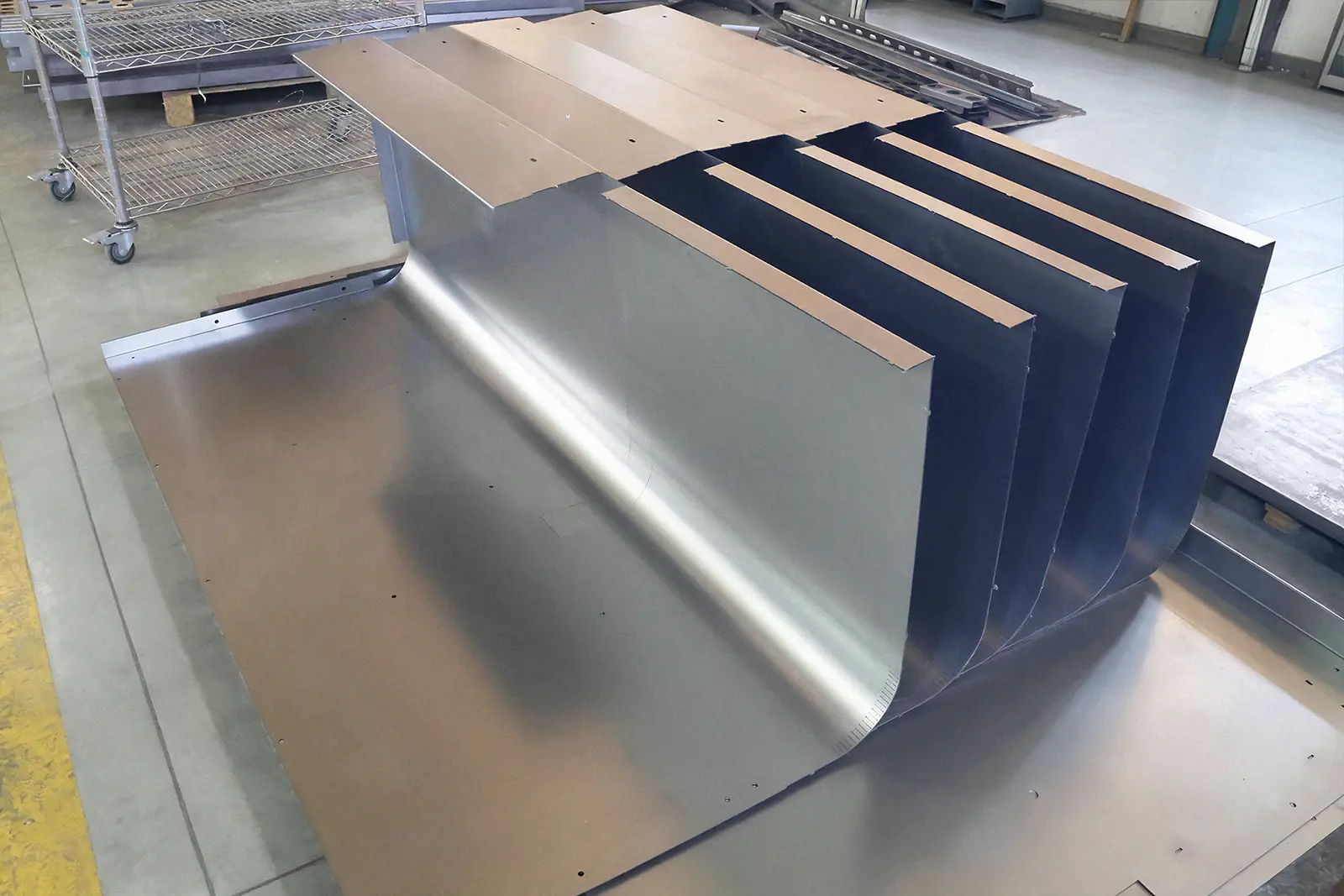

Sheet Metal Bending Parts Gallery
Examples of bent sheet metal components for industrial applications
Frequently Asked Questions
What is the minimum order quantity for sheet metal bending?
We accept both small and large orders. For prototype development, we can produce as few as one piece, while for production runs, we can handle high-volume orders efficiently.
How long does it take to complete a sheet metal bending project?
Lead times depend on the complexity of the project, order quantity, and current workload. For simple projects, we can often deliver within 3-5 days, while more complex projects may take 5-7 days. We'll provide a specific timeline when we quote your project.
What file formats do you accept for design files?
We accept various CAD file formats, including DXF, DWG, STEP, IGES, and SolidWorks files. If you have questions about specific file formats, please contact us.
Can you help with design optimization for sheet metal bending?
Yes, our engineering team can review your designs and suggest optimizations to improve bending quality, reduce material waste, and ensure the best possible results for your project.
What quality control measures do you have in place?
We implement strict quality control processes throughout the bending process, including material inspection, in-process inspection, and final inspection. We also offer additional testing services upon request, such as dimensional inspection and material certification.
