Our Custom Sheet Metal Welding Services
Advanced sheet metal welding capabilities for strong, durable joints with exceptional quality and efficiency
We offer multiple welding processes to match your material and application:
- TIG Welding – Provides precision welding for stainless steel, aluminum, and copper.

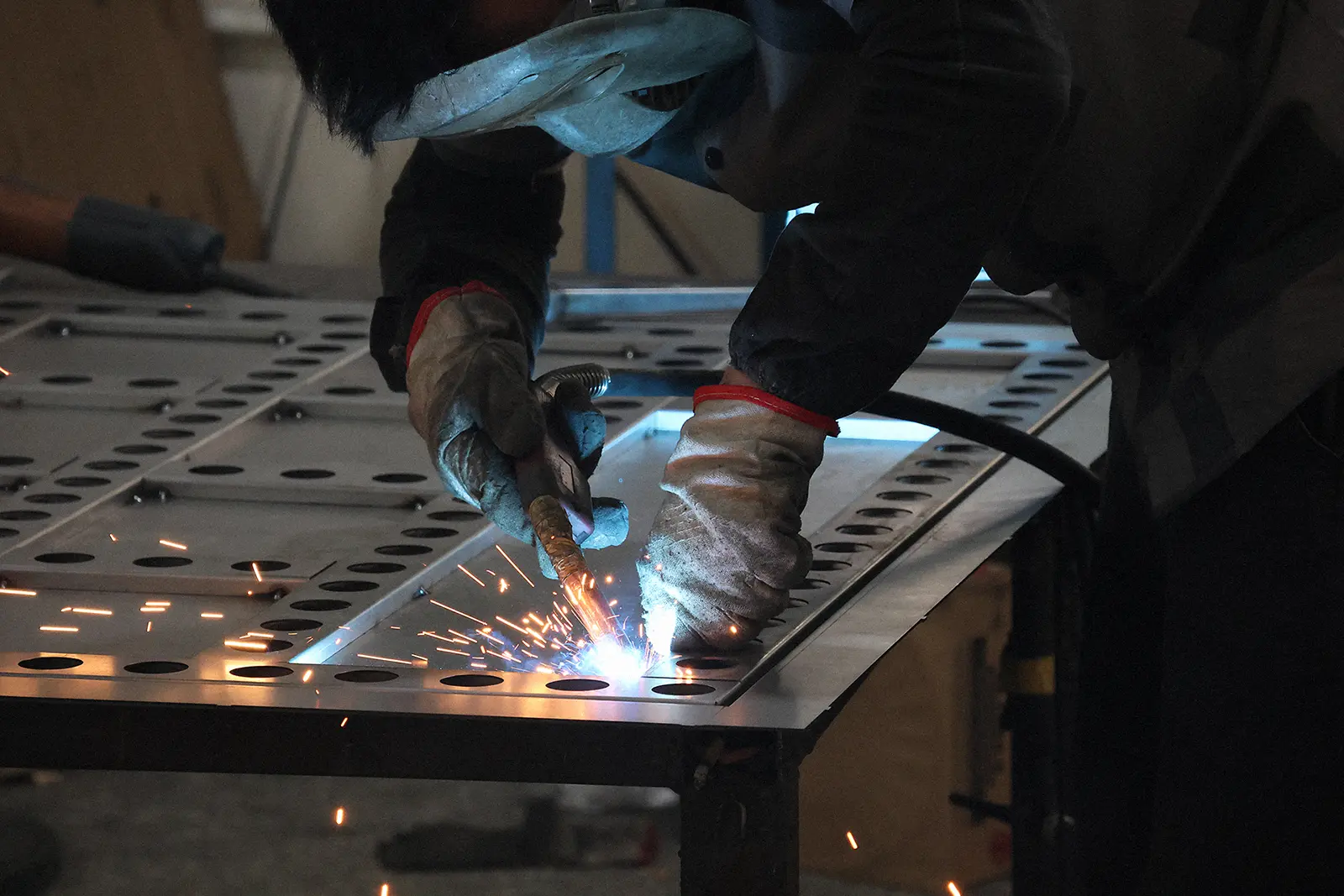

- MIG & MAG Welding – High-efficiency welding for carbon steel and thicker parts.
- Spot & Resistance Welding – Fast, clean joints for thin sheet metal.

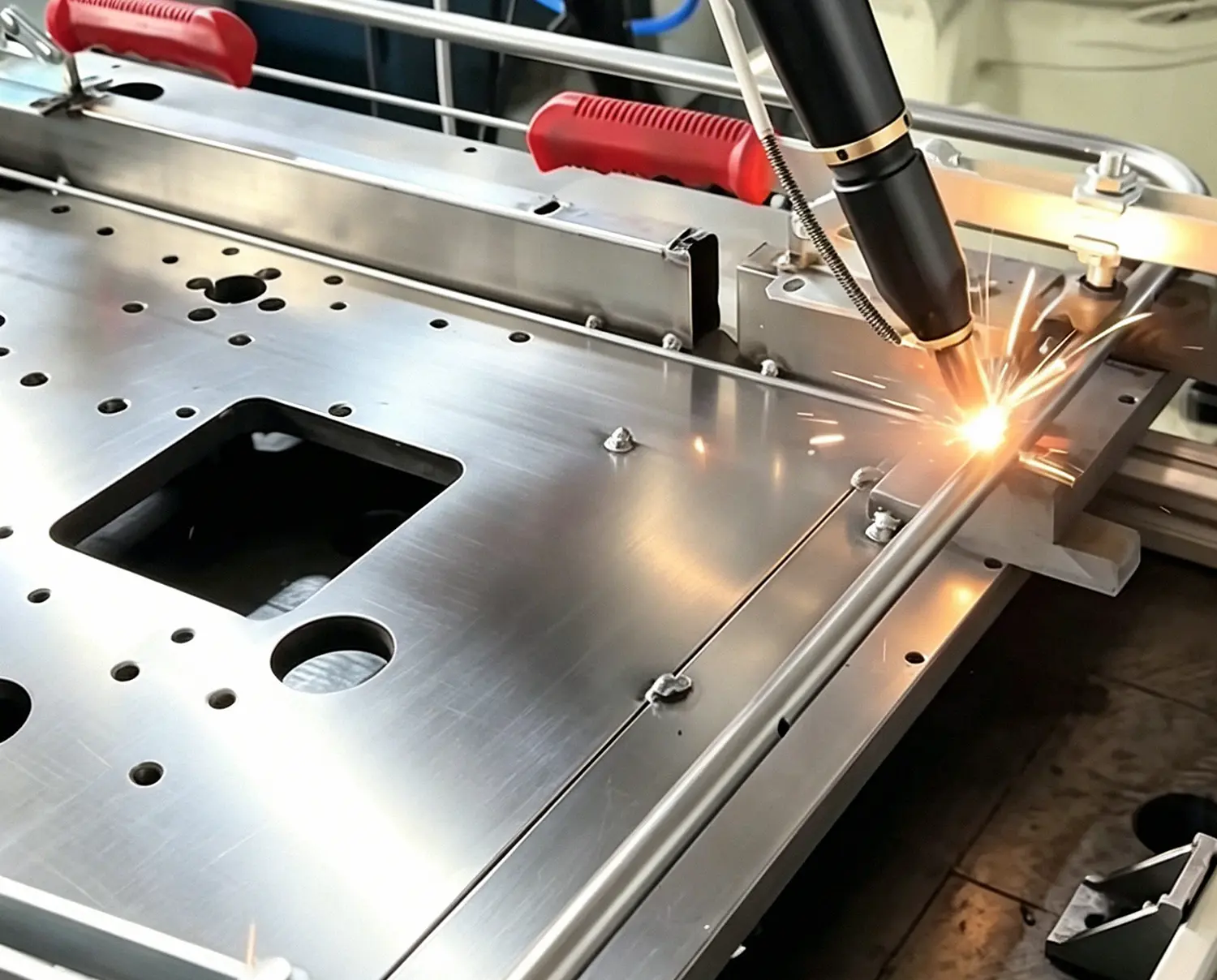

- Laser Welding – Narrow, deep welds with minimal heat distortion.
Quality & Post-Processing
- AWS- and ISO-compliant processes.
- Grinding, finishing & assembly available.
- From small-batch prototypes through high-volume production.
Precision welding for stainless steel, aluminum & copper. Produces clean, strong joints in thin- to medium-gauge parts and is ideal for enclosures and brackets.
Provides high-efficiency welding for carbon steel and thicker materials. Continuous wire feed creates fast, reliable joints for frames and structural parts.
Creates fast, clean joints in thin sheet metal without filler material. Suitable for high-volume production of panels and housings.
Produces narrow, deep welds with minimal heat distortion across multiple alloys. Suitable for high-precision parts, complex geometries, and thin materials.
Sheet Metal Welding Core Advantages
Why welding is often the preferred choice for metal assemblies
Strong, permanent connections
Welding fuses metal parts into one solid piece, so the joint is often as strong as the material itself. This creates long-lasting, stable bonds that hold up under structural stress.
Seamless, leak-proof seams
Unlike bolts or rivets, welding forms continuous, gap-free seams. That makes it the go-to method for parts that need to be airtight or watertight, like enclosures, tanks, and housings.
Flexible for complex designs
It works with custom shapes and mixed-material assemblies that would be hard to build with traditional fasteners. This lets you create cleaner, more streamlined structures without extra hardware.
Works with most common metals
Our welding processes reliably handle carbon steel, stainless steel, aluminum, copper, and various alloys, making them suitable for most industrial and commercial applications.
Clean finish options
Welded joints can be ground down to flat, uniform surfaces. This cuts down on visible hardware and reduces spots where corrosion or wear could start.
Sheet Metal Welding Technical Parameters
Below are our standard dimensional tolerances for sheet metal welding, aligned with common industrial fabrication requirements. These specifications ensure consistent, reliable welds for a full range of custom components and assemblies.
| Size Range (mm) | Grade 1 Tolerance | Grade 2 Tolerance | Grade 3 Tolerance | Grade 4 Tolerance | Grade 5 Tolerance | General Angle Tolerance |
|---|---|---|---|---|---|---|
| 0-30 | ±0.1 | ±0.2 | ±0.3 | ±0.4 | ±1 | 90°±1° |
| 31-120 | ±0.15 | ±0.25 | ±0.4 | ±0.7 | ±2 | |
| 121-250 | ±0.2 | ±0.3 | ±0.6 | ±1 | ±2 | |
| 251-500 | ±0.3 | ±0.5 | ±1 | ±1.8 | ±2 | |
| Above 500 | ±0.5 | ±0.8 | ±1.5 | ±3 | ±3 |
Sheet Metal Welding Materials
We work with a full range of industrial sheet metals for precision welding applications. Each material is selected and processed to deliver strong, consistent welds for reliable, production-ready components.
| Material | Characteristics | Thickness Range | Common Applications |
|---|---|---|---|
| Stainless Steel | Corrosion-resistant, durable, hygienic | 1.0–4.0 mm | Food-grade equipment, medical components, outdoor assemblies |
| Carbon Steel | High strength, good weldability, cost-effective | 0.8–3.0 mm | Structural brackets, frames, general manufacturing parts |
| Aluminum Alloys | Lightweight, corrosion-resistant, high conductivity | 0.8–5.0 mm | Heat sinks, automotive parts, lightweight assemblies |
| Galvanized Steel | Zinc-coated, weather-resistant | 0.8–3.0 mm | Outdoor enclosures, construction hardware, rust-prone applications |
| Copper | High electrical and thermal conductivity; malleable | 0.8–3.0 mm | Electrical components, thermal management systems |
| Brass | Machinable, corrosion-resistant, decorative finish | 0.8–2.5 mm | Decorative hardware, valves, electrical connectors |
Surface Treatment Processes
Surface-treatment options for welded sheet-metal parts.
| Treatment Name | Description | Applicable Materials | Color | Texture |
|---|---|---|---|---|
| Anodizing | Improves corrosion resistance, wear resistance, and hardness while protecting the metal surface. | Aluminum | Transparent/Black/Gray/Red/Blue/Gold | Smooth/Matte |
| Shot Blasting | Creates a smooth, matte surface and can be used as a pretreatment step. | ABS, Aluminum, Brass, Stainless Steel, Steel | None | Matte |
| Powder Coating | Uses electrostatic application and heat curing to create a highly durable finish. | Aluminum, Stainless Steel, Steel | Black/Any RAL/Pantone color | Glossy/Semi-glossy |
| Electroplating | Multi-functional for function/decoration/corrosion protection | Aluminum, Steel, Stainless Steel | None | Smooth/Glossy |
Frequently Asked Questions
What welding processes do you use for sheet metal parts?
We work with MIG, TIG, spot, projection, robotic, and laser welding, matched to the material, thickness, and design requirements of each part.
Which materials can be welded in sheet metal fabrication?
Common options include carbon steel, stainless steel, aluminum alloys, galvanized steel, copper, and brass. Each material is paired with the right welding method for consistent results.
Can you weld thin sheet metal without warping?
Yes. We use low-heat processes like TIG or laser welding, paired with proper fixturing, to minimize distortion on thin materials down to 0.8 mm.
Do you handle both prototype and high-volume welding orders?
Yes. Our setup supports small-batch prototypes through to large production runs, with the same process controls applied to every order.
What types of welded assemblies do you make?
We produce brackets, enclosures, frames, housings, and structural assemblies for industrial, commercial, and general manufacturing applications.
How do you ensure weld quality on custom sheet metal parts?
Weld quality is controlled through consistent process parameters, visual inspection, and fixturing to meet dimensional and functional requirements.
